Exterior

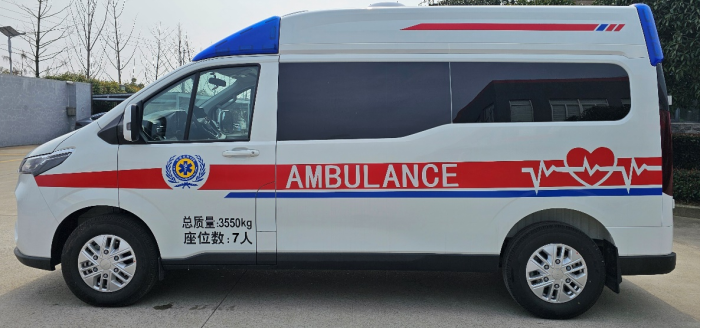

The Iveco Emergency Ambulance Trcuk model paramedic ambulance is built by adding a fully independent compartment to the chassis of the new Iveco Polaris vehicle. The vehicle adopts the most popular European and American exterior design concepts, and the optimized space facilitates emergency operations inside the vehicle.
Interior
The interior of the vehicle has partitions separating the ambulance cabin from the driver’s cabin. Independent air conditioning systems in the front and rear achieve air isolation. An optional negative pressure system can effectively harmlessly treat the air inside the vehicle before discharge, preventing further infections while ensuring the safety of the driver and passengers. The interior is molded from polymer materials, which is aesthetically pleasing and neat, and easy to clean and disinfect.

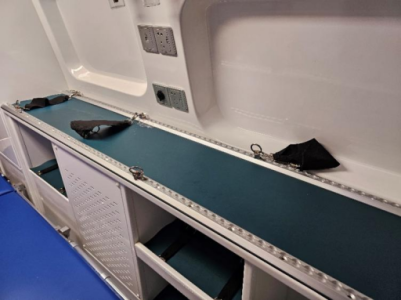

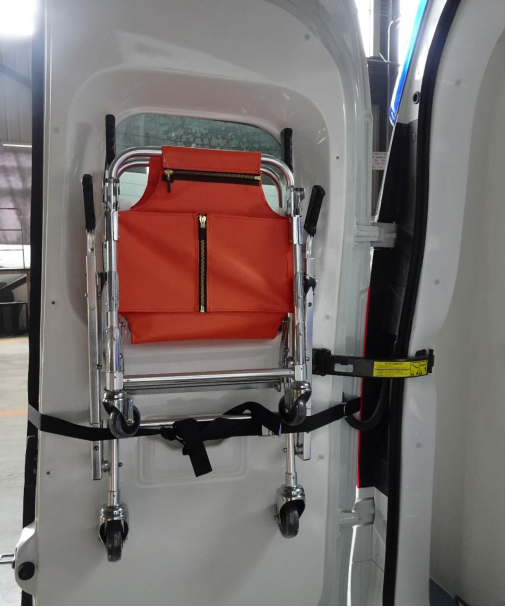

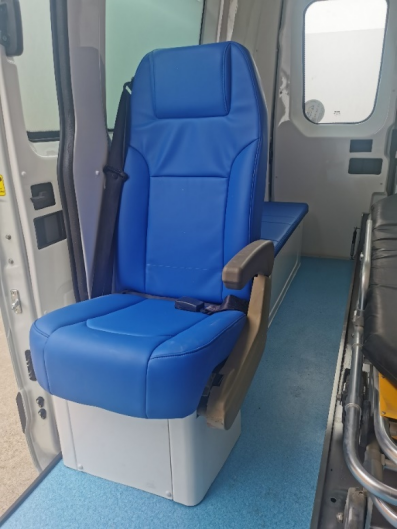

The ambulance room is equipped with medical equipment cabinets, medicine cabinets, stretchers, and long-backrest seats, and is also fitted with high-end medical facilities such as infusion hooks, a central oxygen supply system, manifold valves, and sterilization lamps, maximizing the support for medical rescue.
| Product Model | SZY5048XJHN6 | Name | Guardian-type ambulance |
|---|---|---|---|
| Country of manufacture | CHINA | Brand | Iveco Zhongyi |
| Length | 5364mm | Width | 2030mm |
| Hight | 2500mm | ||
| Medical Cabin Chief | 2700mm | Medical cabin width | 1700mm |
| Medical cabin high | 1760mm | Medical cabin volume | 8.1cubic meter |
| Number of springs | January 3 | Number of axles | 2 |
| Wheelbase | 3366 mm | Front track | 1734 mm |
| Rear track | 1756 mm | Number of tires | 4(with tire pressure monitoring) |
| Tire specifications | 235/60R17LT | Total Mass | 3550kg |
| Curb weight | 2750 kg | Maximum speed | 160km/h(Cruise control) |
| Rated passenger capacity | 7 people | Minimum turning diameter | 13m |
| Chassis model and company | NJ6546FDC5C | ||
| Types of Fuel | Diesel | Emission standards | GB17691-2018 National VI |
| Engine Model and manufature | SC20M150Q6D / Shanghai Xindongli Automobile Technology Co., Ltd. | ||
| Displacement | 1996ml | Engine Power | 110kw |
| Fuel tank capacity | 80L | Fuel consumption 100km | 7.4L |
| Drive type | Front-engine, rear-wheel drive | Transmission | 9-speed manual-automatic transmission |
| Minimum ground clearance | 162mm | Maximum torque | 375 N·m |
