Power and Torque
119 kW & 390 Nm. TUNLAND G7 engine is designed by Germany AVL, Bosch’s 3rd generation electronic high pressure common rail system, with only 7.5L per 100 kilometers.
Driving Modes
BorgWarner electronic Part-time 4WD with 4 driving modes of 2H/AUTO/4H/4L. The auto mode can automatically switch between 4WD and 2WD drive and distribute the torque between front and rear axles.

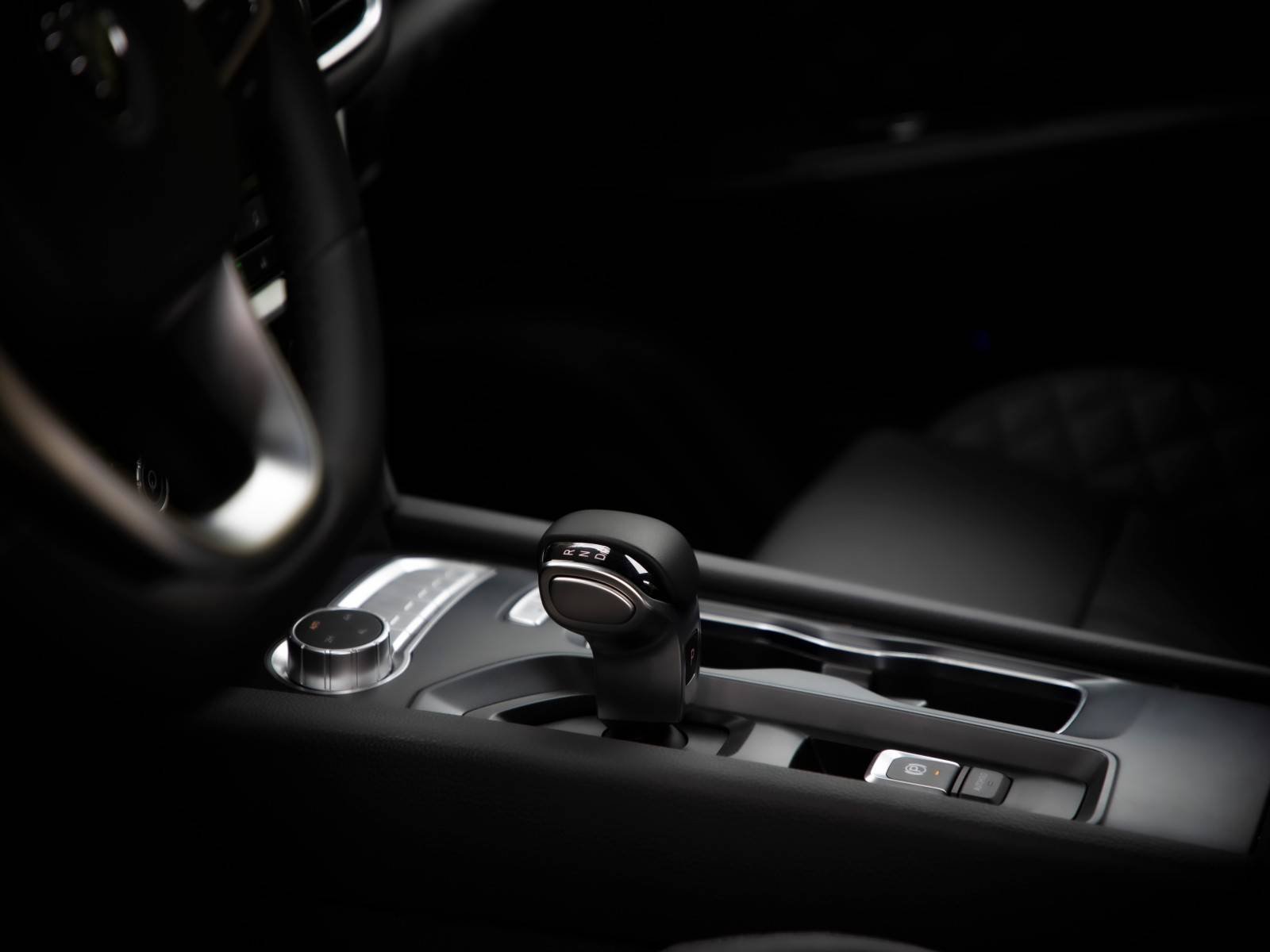

Shifting Smoothly
ZF 8AT gearbox, outstanding efficiency of shift and transmission. Compared with the traditional 6AT, the torque is increased by 100Nm.
High Efficiency
BorgWarner’s new 5th generation VGT turbo booster with only 1.5S response.
Easy Handling
Freely switch between sports and economic modes. ECO mode bring you lower noise. Sport mode means more aggressive speed response for both overtaking and uphill.
No Fears of the road
American Eaton rear axle diff-lock, effectively guarantees power output and helps to get out of trouble easily.
Convenient to drive
One-button start, keyless entry system
360 Degree Bird View Panoramic System
Blind Spot Detection (BSD)
Forward Collision Warning (FCW)
Forward Collision Warning System can warn vehicles 4m-120m ahead and pedestrians 4-60m ahead. If there is an impending collision, the system will warn you of the danger.
Door Open Warning (DOW)
Brake Priority System (BOS)
Lane Change Assist (LCA)
Better NVH
The original double balance shaft improves the operation efficiency, and the noise inside the car is as low as 47dB.
Handle
Exquisite electronic handle design, and more than 15 storage places in the cab.
Seat
Bionic seat, H-shaped skeleton, shoulder support design, electric adjustment, imitation first layer cowhide material, good air permeability, fast heating.

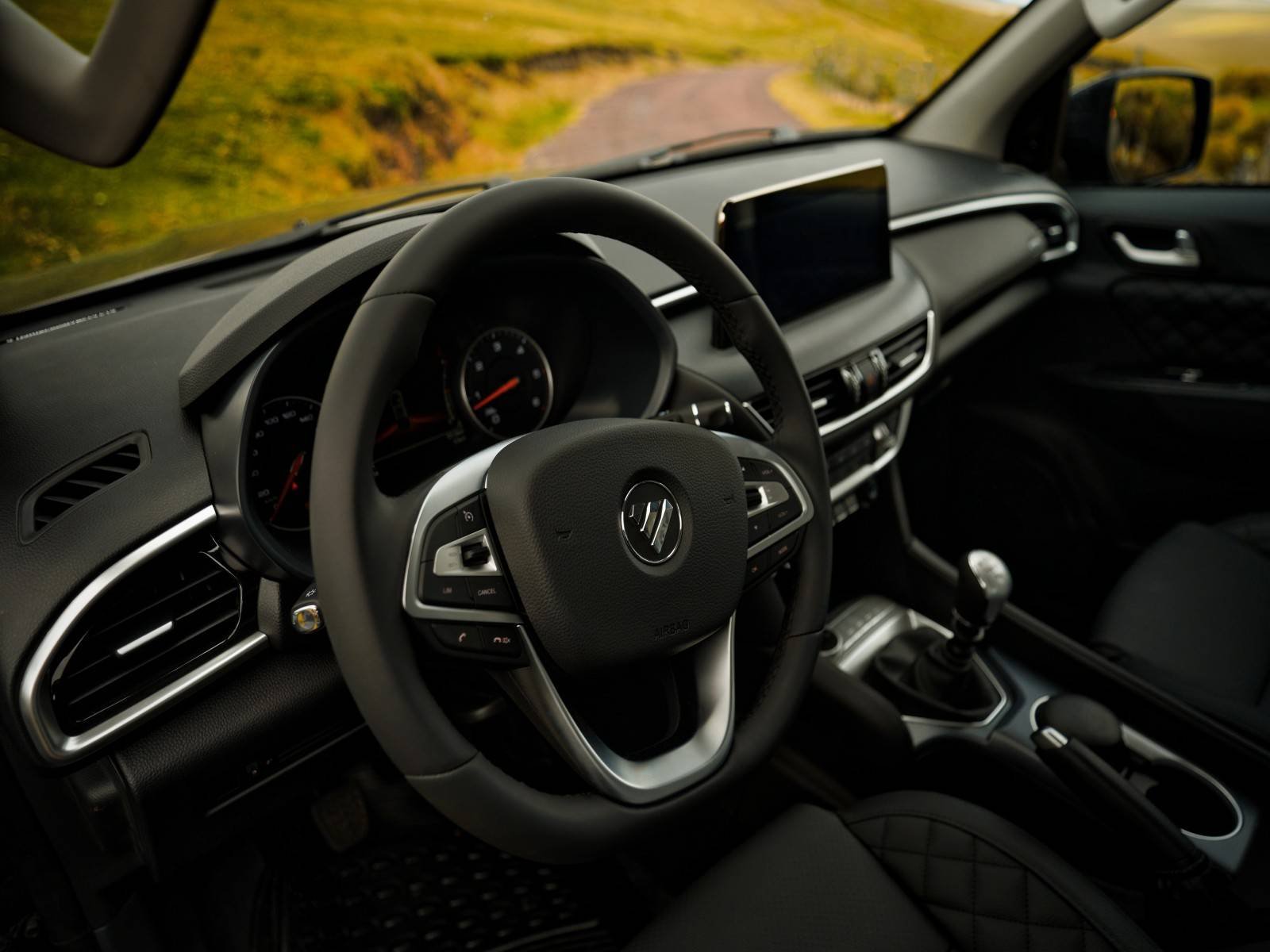

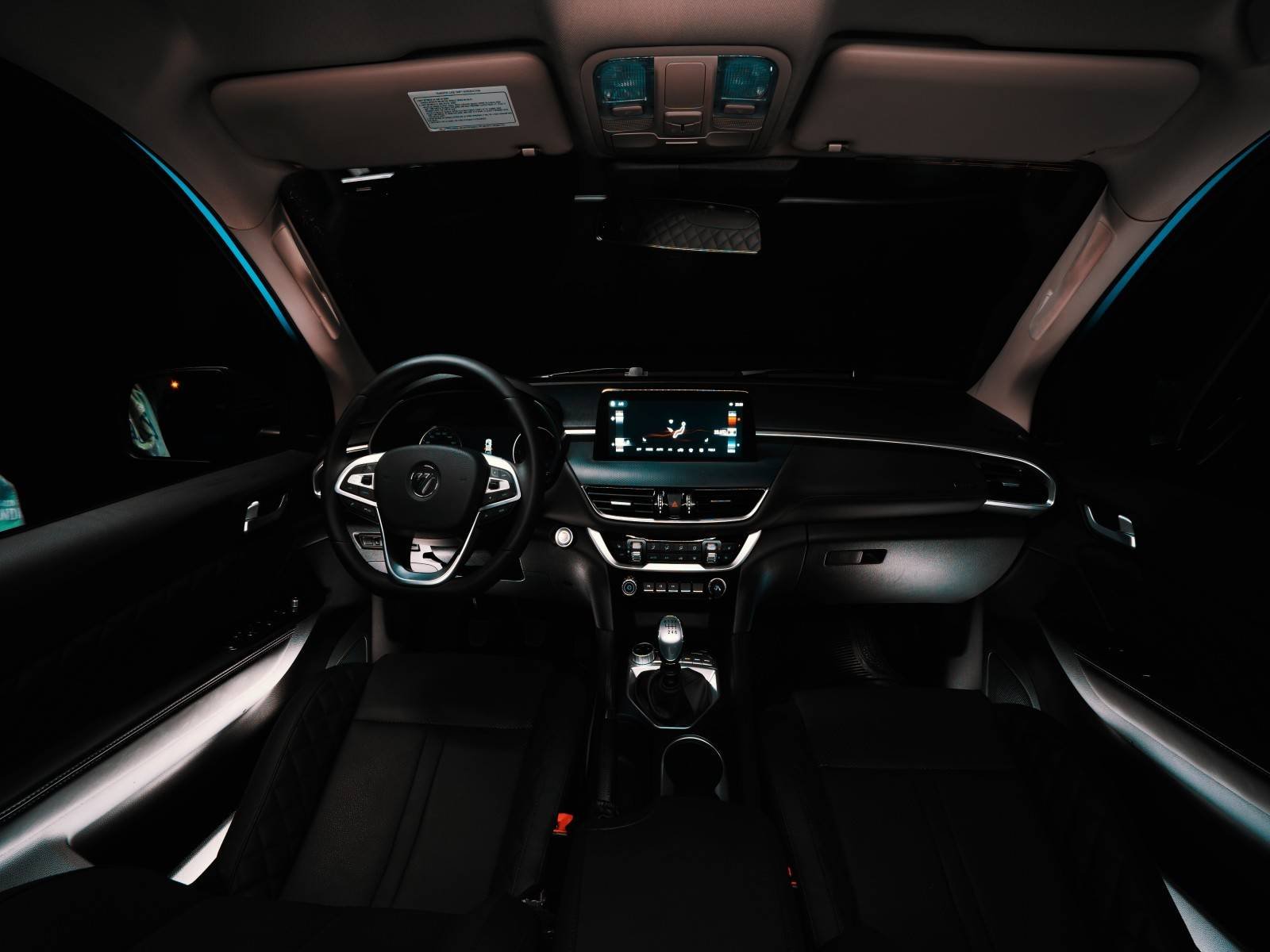

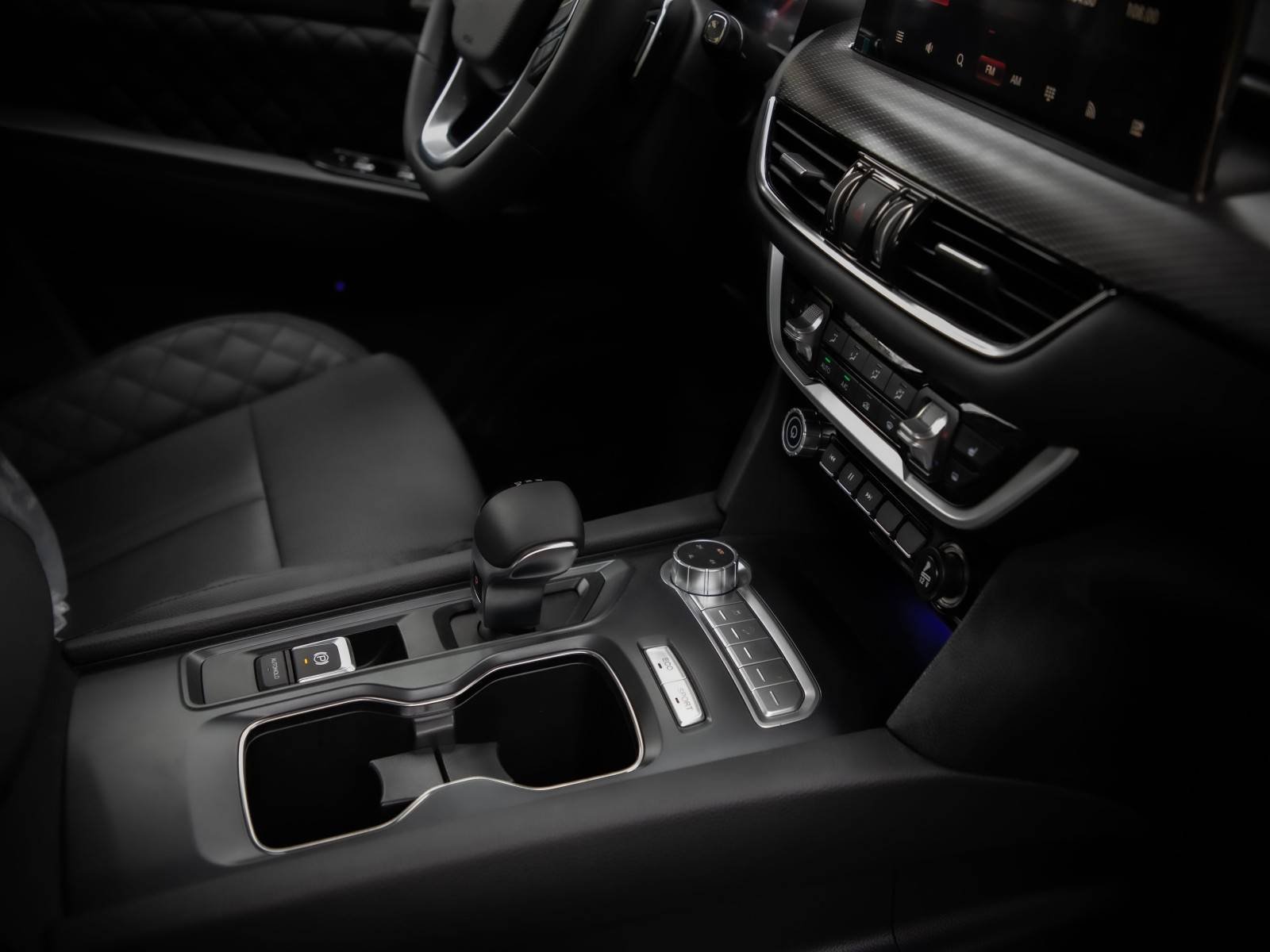

Steering wheel and instrument cluster
Sports steering wheel, 4-way adjustment. 8-inch digital LCD instrument, 10.25-inch large high-definition floating central control screen, multi-touch.
Dashboard
Exquisite leather covering, three-dimensional layered instrument panel, aviation-grade cockpit.
Light
Colorful changing atmosphere lights.
6 Airbags + Pre-tensioned seat belt
Dual airbags + side airbags + side curtain airbags, with pre-tensioned seat belts.
Reinforced body
High-strength steel body, lightweight and Energy absorption design for crash energy management.
HBB
The braking system increases the Hydraulic Brake Boost (HBB) function, the braking response is sensitive.
| FOTON TUNLAND G7 PICKUP 4*4 | |||
|---|---|---|---|
| Basic Configuration | Model | G7 | G7 |
| Engine | Diesel 2.0T | Diesel 2.0T | |
| Gearbox | 6 MT | 8AT | |
| Vehicle number | G2 F010-K032E001 | G2 F0119R002E001 | |
| Announcement No. | BJ2037Y3 MAV-DM | BJ1037V3 MAV-1 | |
| Size parameters | Drive type | 4 ×4 | 4 ×4 |
| Wheelbase | 3110 | 3110 | |
| Overall dimensions of vehicle (chassis) | 5340 × 1940 × 1860 | 5340x 1940x 1870/1880 | |
| Cargo compartment dimensions | 1520 × 1580 ×440 | 1520 × 1580 ×440 | |
| Body | Left and right rudder | Left rudder | Left rudder |
| Cab status | Double row | Double row | |
| Seating capacity | 5 | 5 | |
| Powertrain | Power Type | diesel fuel | diesel fuel |
| Engine Model | 4 F20 | 4 F20TC37 | |
| Engine Manufacturer | Beijing Foton Motor Co., Ltd. | Beijing Foton Motor Co., Ltd. | |
| Displacement ml | 1968 | 1968 | |
| emission | Euro IV | Euro III | |
| Emission route | / | / | |
| Power/speed (kw/rpm) | 120 | 120 | |
| Engine torque (Nm/rpm) | 390 | 415 | |
| Gearbox Model | ZM6T82 | 8 HP50 | |
| Gearbox manufacturers | China | ZF | |
| Chassis system | Brake type | Hydraulic brake | Hydraulic brake |
| Braking form | Front disc and rear drum | Front and rear disc | |
| Brake control | ABS+EBD | ESP/ESC | |
| Tire model | 245/70R 16 (new style rim) 265/60R 18 (aluminum wheel) Esp | 265/65R 17 | |
| Tire quantity | 4 + 1 | 4 + 1 | |
| Fuel tank capacity(L) | 76 | 76 | |
| Suspension type | Front double wishbone independent suspension/rear leaf spring non- independent sus ension | Double wishbone independent suspension/leaf spring non-independent suspension | |
| Number of leaf springs | 6 | 6 | |
| Function Configuration | Front grille | FOTON letter type (bright chrome plated) | FOTON letter model (crystal gray) |
| Rear bumper | 203 Rear bumper | 203 Rear bumper | |
| Interior | Light gray + blue-black interior | General F9-2024 model interior (blue stitching) | |
| Driver's Seat | Manual 6-way without heating | Electric 6-way with heating | |
| Passenger seat | Passenger seat is not heated, but has SBR | The passenger seat is heated and has SBR | |
| steering wheel | Imitation leather multi- function, bus steering wheel | Imitation leather multi- function, bus steering wheel | |
| air conditioner | Cooling and heating, electric air conditioning | Cooling and heating, automatic air conditioning | |
| Cargo compartment treasure | Spray-coated cargo compartment protector | Spray-coated cargo compartment protector | |
| Multimedia equipment | MP5 +Reversing Image | 8-inch screen MP5 |
