Royal Saloon
Royal Saloon is the version for both family and business reception. With luxury interior, large space and reliable applications for comfort and safety, it can take care of everyone beyond big.
Supporter
Supporter version satisfies needs for passenger transferring. With multi-layout of seats design, the capacity of 9-15 passengers is available.
Transor
Transor version is developed for freight transferring, with the maximum capacity for high load.

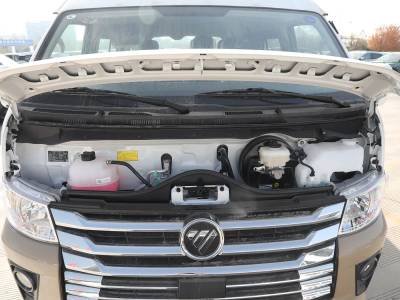

Power and Torque
101 kW & 330 Nm. Displacement 2.0L, 4 cylinder and DOHC 16 valve with Water Charge Air Cooling (WCAC). Lowest noise with 46.6dB among modes in the same grade. 16 Inch Flanged Gate Valve.
Reliability
AUCAN engine is jointly development with Ricardo UK, who has an international patent for efficient combustion design. With the TVCS combustion system, AUCAN Power can be suitable for light truck-level working conditions.
Durability
Tested in environments of 50℃ degrees in Turpan, -40℃ in Hulunbuir, and a plateau of 4767 meters in Kunlun Mountains. B10 service life 500,000 kilometers, low failure rate, IPTV3 only 15%, less than 17% of same level engines.

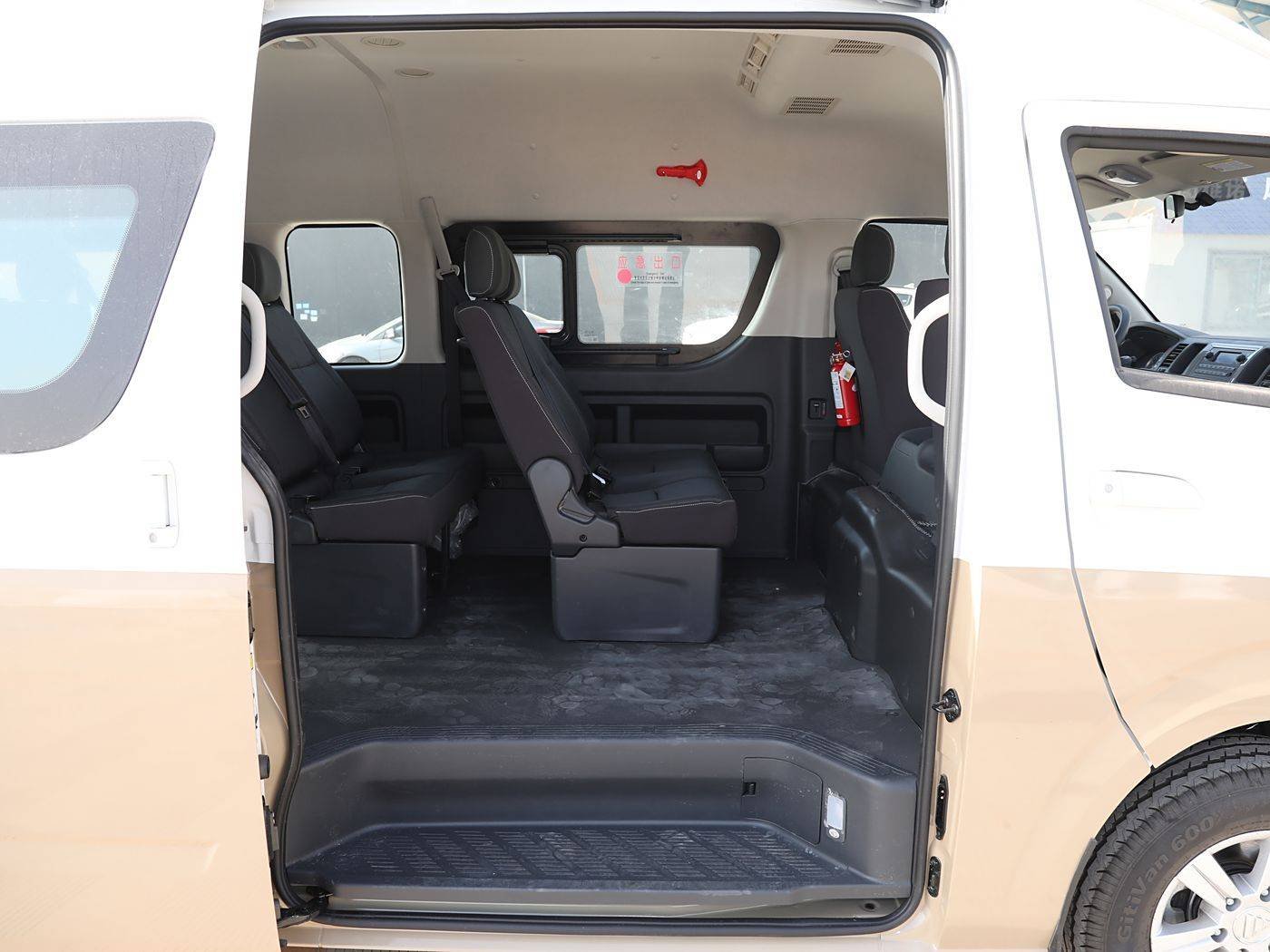

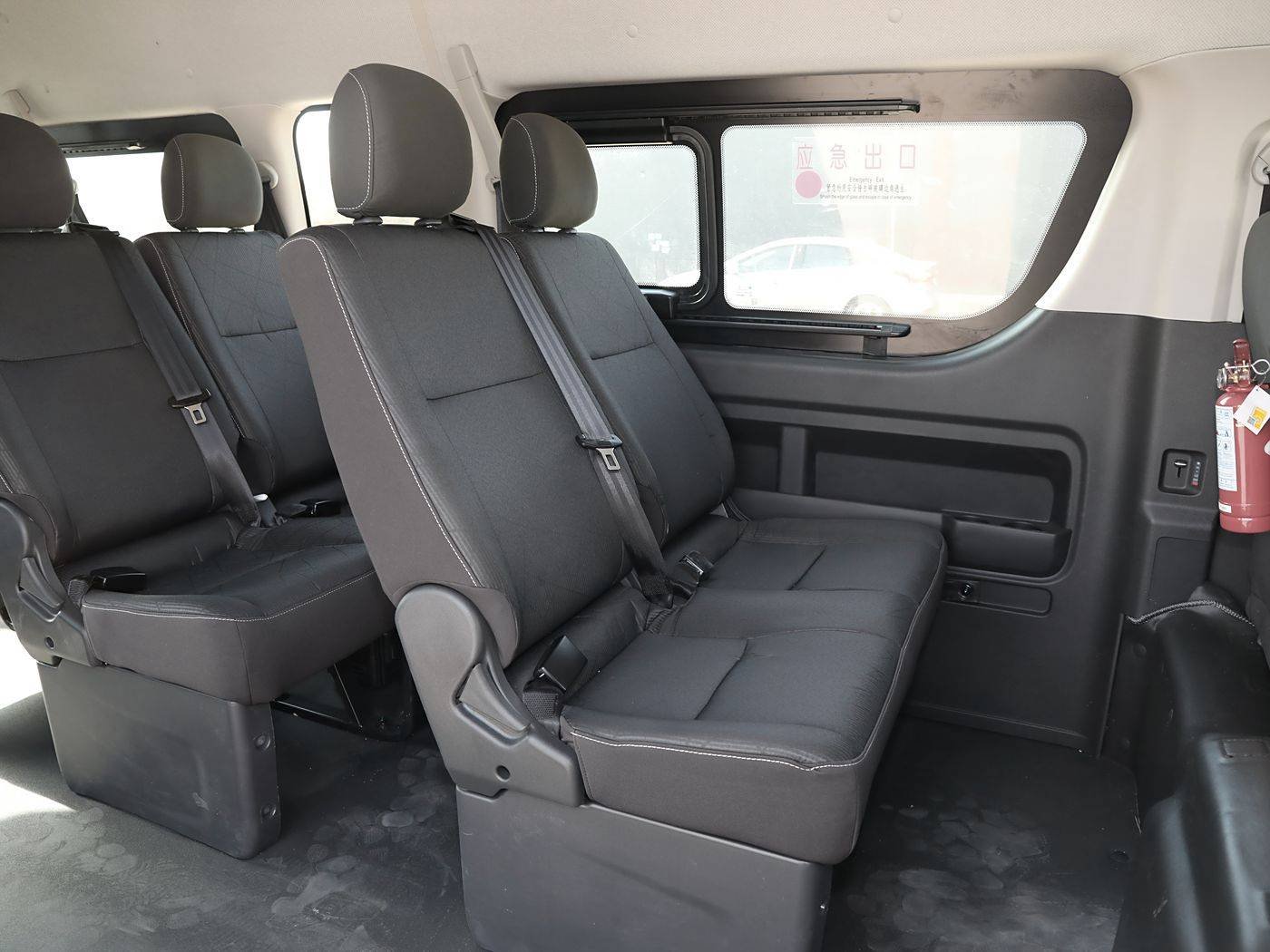

SEATS

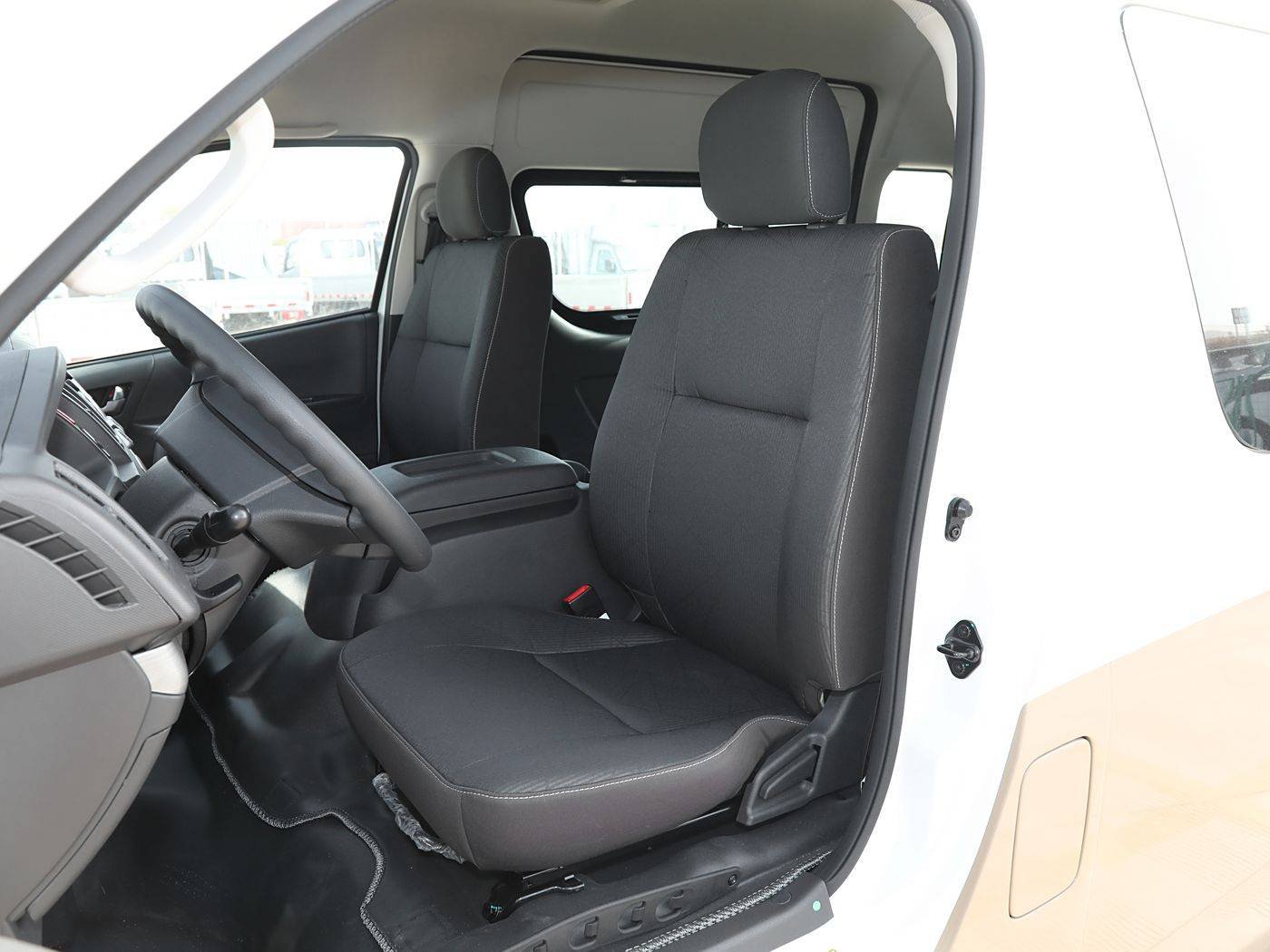

Driver seat and front passenger seats are adjustable backward and forward with adjustable backrest and split headrest, comfortable and safe. For small middle seats, backrest can be folded, headrest and backrest storage box state are optional, to improve the comfort and storage space.

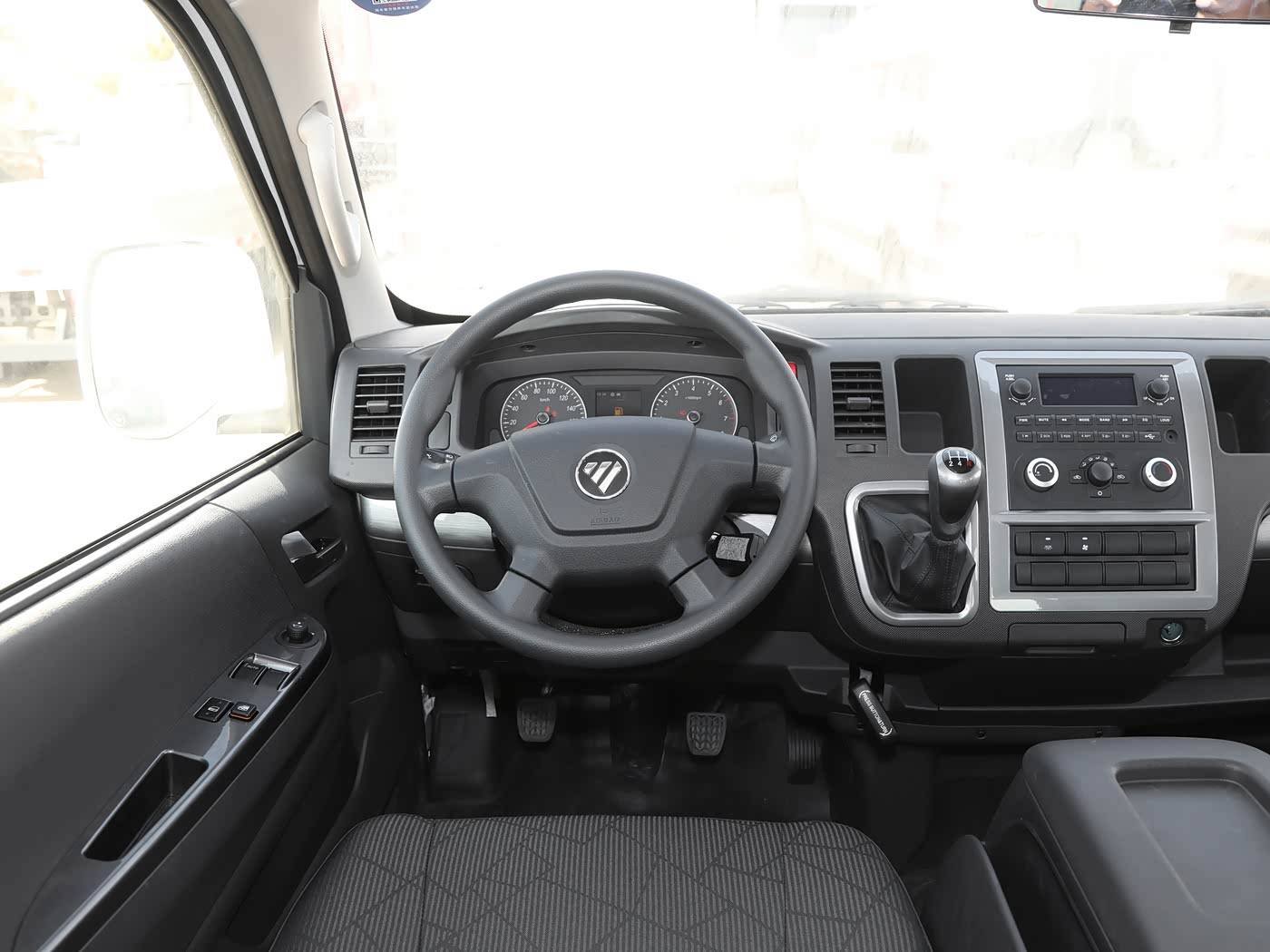

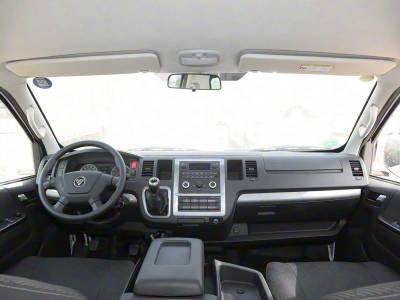

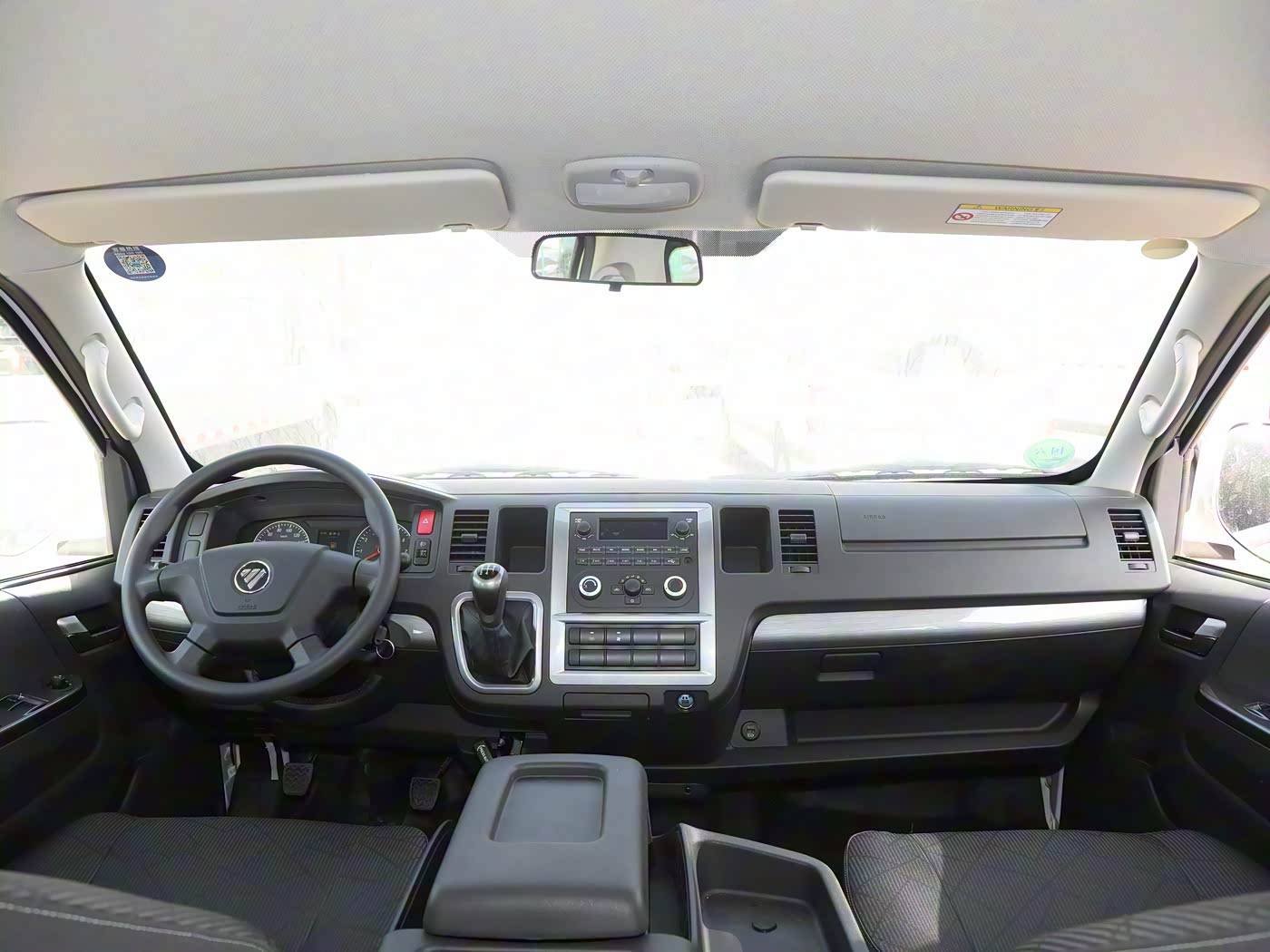

Classic Dashboard

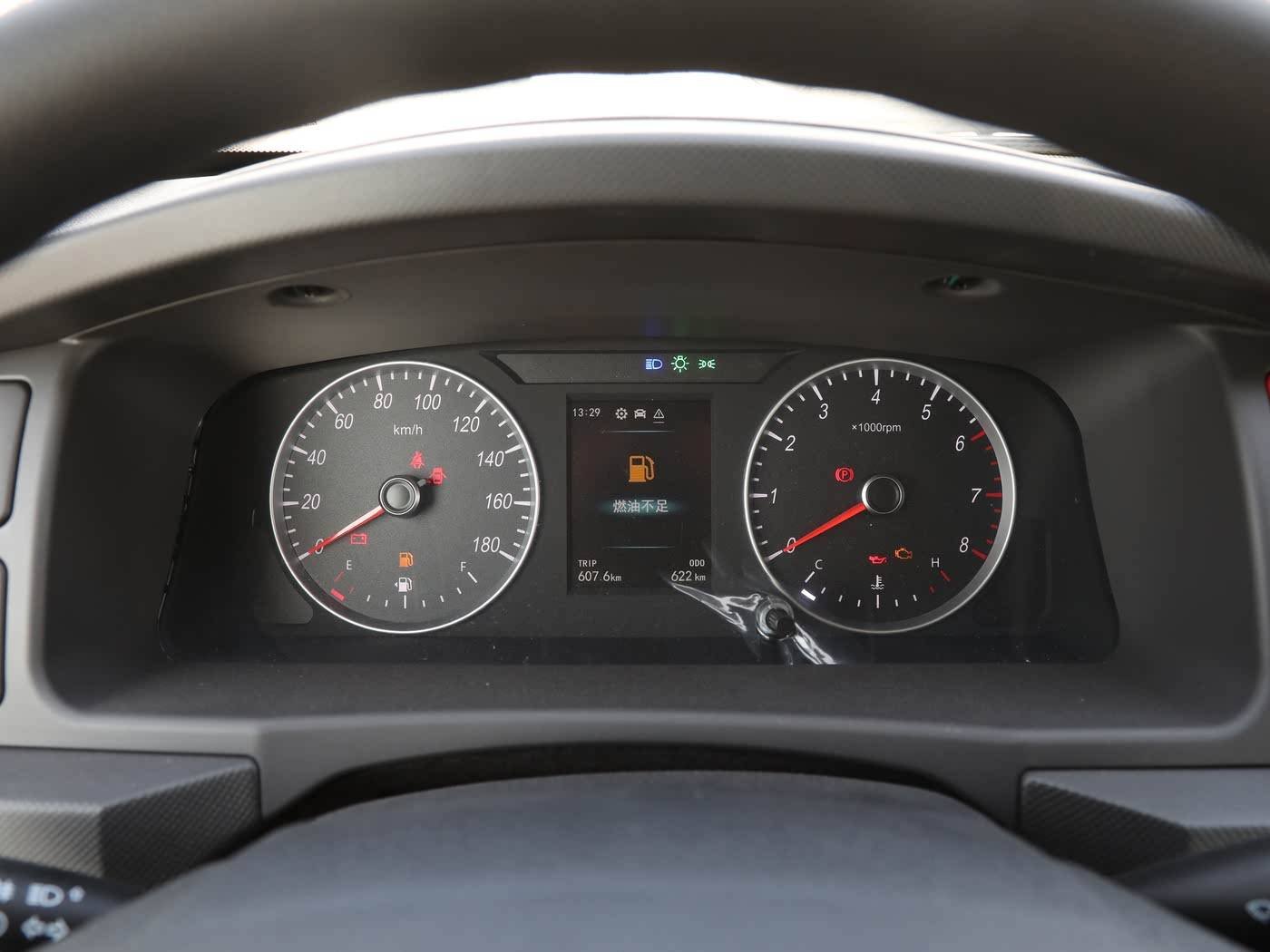

3.5 inch TFT color screen meter.
Front center armrest box.
Double row A/C air outlets.
Automatic windows.
13 inch center display screen.
For greater carrying capacity, The VIEW CS2 2022 Edition comes with 9.6 cubic meters of cargo space.
19 passengers can be carried up, maximizing your urban operation benefits.
With the high roof to 2285mm, the width to 1920 mm, your goods can turn around in the van easily.
VALUE PACKED
Driver/front passenger side dual air bags.
AUTONOMOUS EMERGENCY BRAKING (AEB)
Identify dangerous collision objects and sound an alarm or apply different levels of braking.
LANE DEPARTURE WARNING (LDW)
It can presciently warn the driver to turn in high-speed situations, reduce rollovers, and correct the driver’s habit of changing lanes without signaling.
| BU | Mid VAN | |
|---|---|---|
| BUA | VIEW | |
| BUB | VK1 | |
| BUC | VIEW CS2 | |
| BUD | BUS | |
| BUE | 5380mm | |
| BUF | ISF2.8 | |
| Vehicle number | 6549B1PDA-A2ZA16 | |
| Announcement Model | BJ6549B1PDA-A2 | |
| Status | Whole vehicle | |

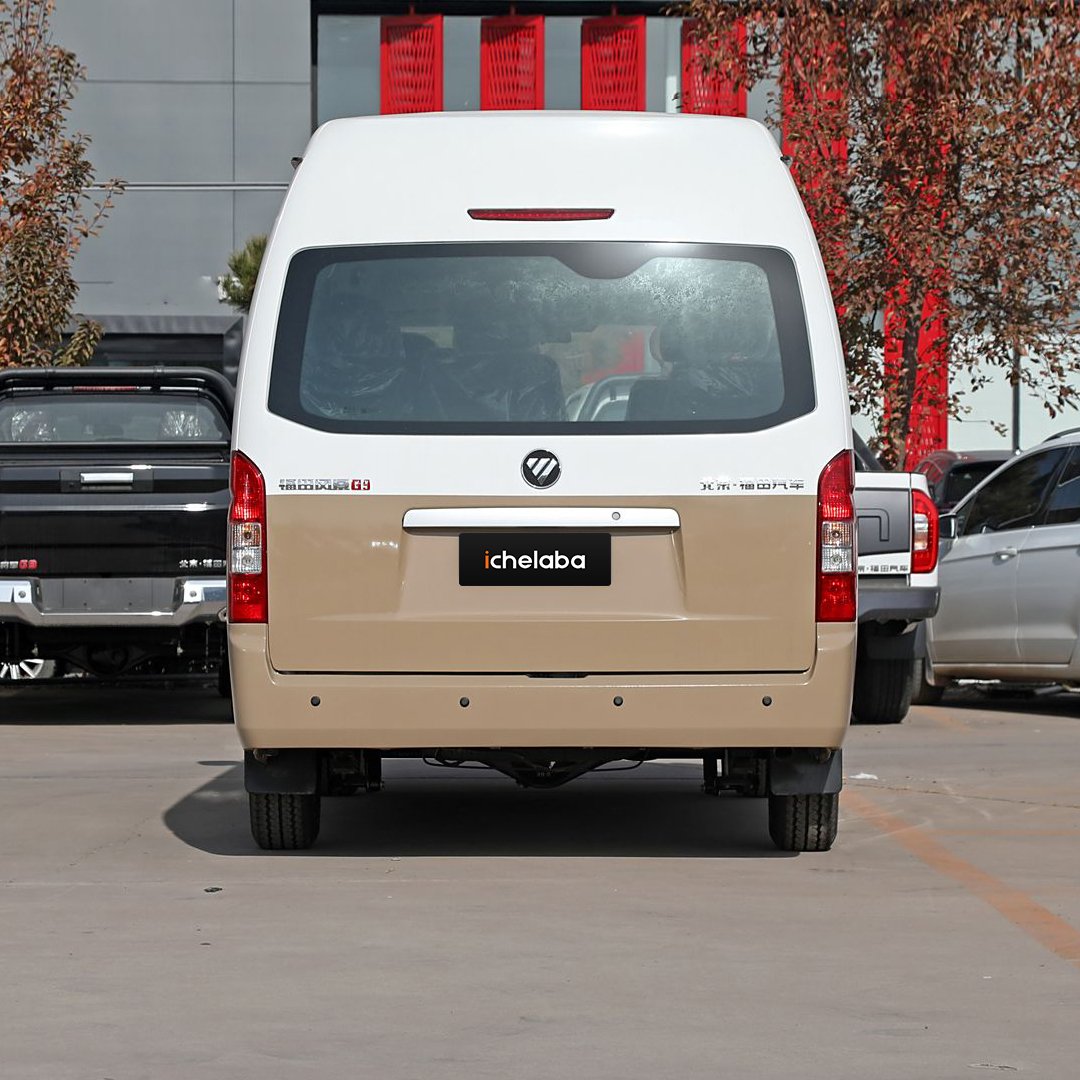

| Back door configuration details | It has defrosting, rear wipers and floor mirrors | |
| Drive form | 4×2 | |
| Wheelbase | 3110 | |
| Overall vehicle (chassis) dimensions | 5380×1920×2285 | |
| The dimensions inside the cargo box | / | |
| Vehicle curb weight | 2255 | |
| GVW | 3400 | |
| GCW | / | |
| Vehicle body width | 1920 | |
| Top height | High roof | |
| Left and right rudder | Left rudder | |
| Cab status | All-inclusive | |
| Number of seats (capacity) | 16 | |
| Types of fuel | Diesel | |
| Engine model/motor model | ISF2.8s2129P | |
| Engine manufacturer/battery manufacturer | Foton Cummins | |
| Displacement (cc)/Battery Capacity (kwh) | 2780 | |
| Emission | Euro Ⅱ | |
| Emission route | / | |
| Power/Speed (kw/rpm) | 96 | |
| Engine torque (Nm/rpm) | 280 | |
| Transmission model | 038J2 | |
| Transmission type | 5MT | |
| Transmission manufacturer | ZM | |
| Front axle load-bearing | / | |
| Middle/rear axle load-bearing | 1800 | |
| Drive axle speed ratio | 3.9 | |
| Braking type | Rear wheel side hand brake | |
| Braking form | Front disk & rear drum | |
| Braking control system | ABS+EBD | |

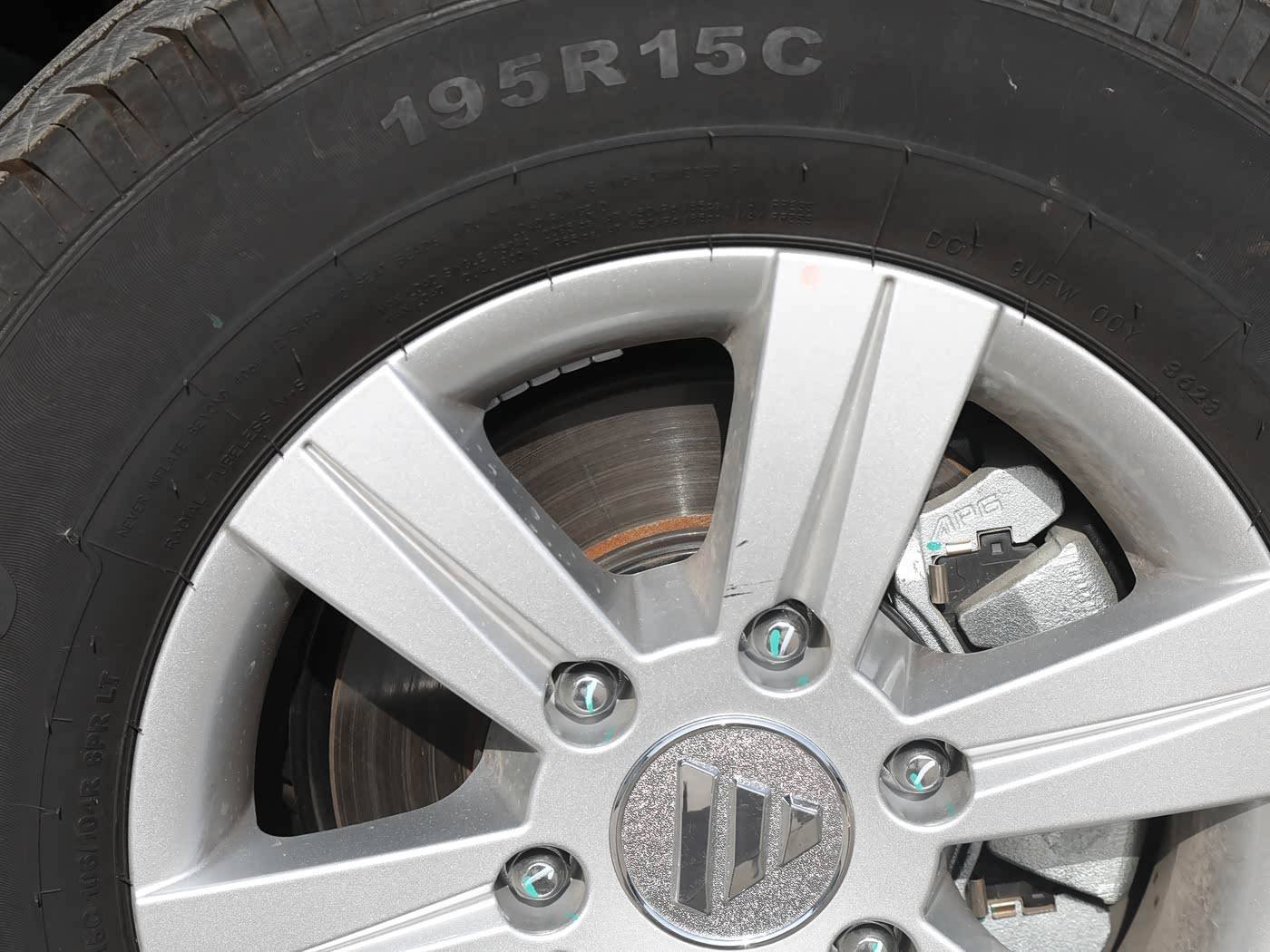

| Tire model | 195R15C Aluminum wheels + spare tire steel wheels | |
| Number of tyres | 5 | |
| Fuel tank capacity | 65L | |

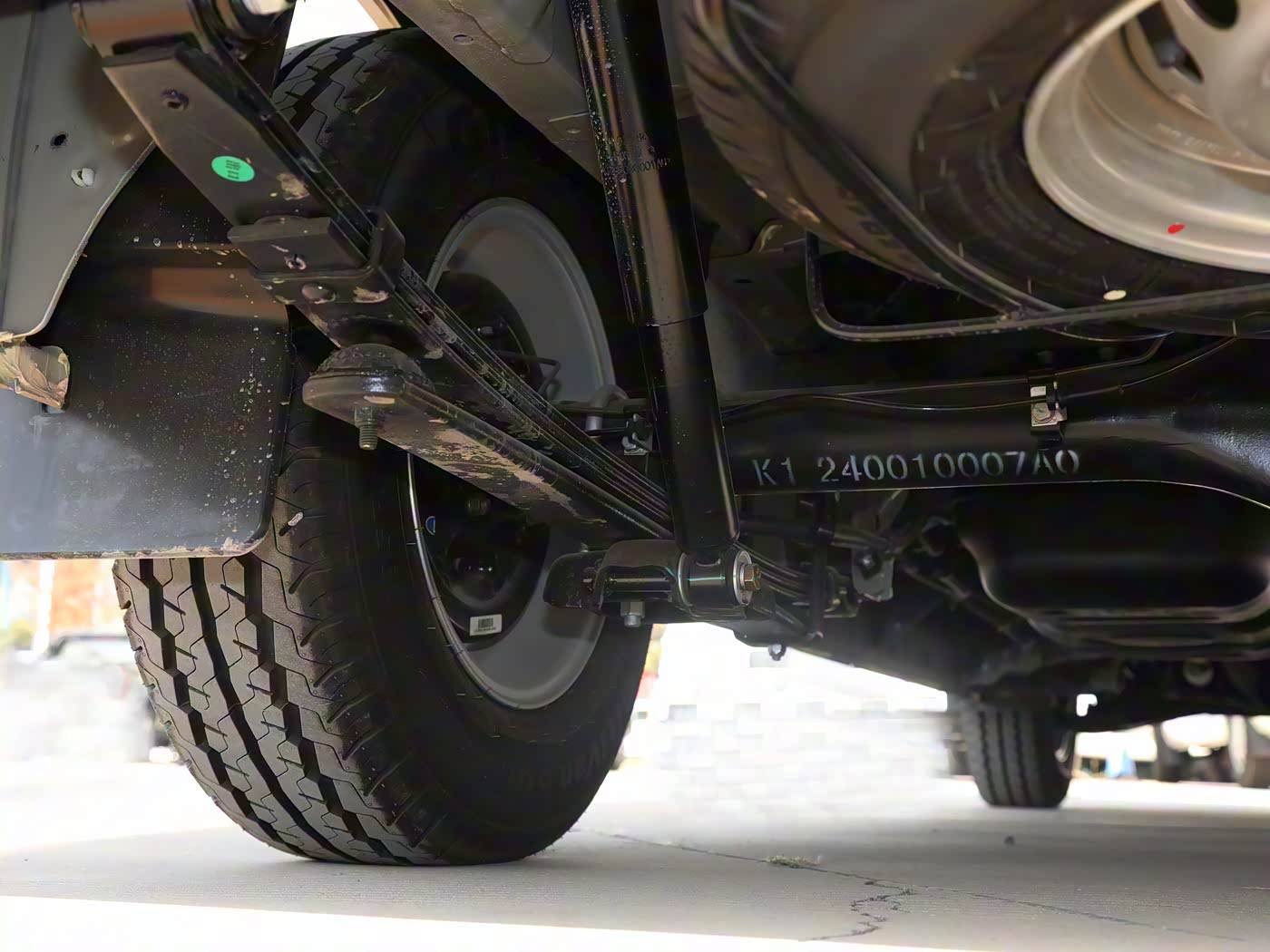

| Suspension form | Front: Double wishbone torsion bar spring independent suspension After: Leaf spring non-independent suspension | |
| The number of leaf springs | Rear：3+1 | |
| Cross-section of the frame | / | |
| Basic configuration | Temperature control system | Front warm air, front and rear air conditioning |
| Entertainment system | MP5 | |
| Bumper | The front and rear bumpers of the same color as the body | |
| Radar | Reversing radar/anti-collision radar without front | |
| The body combination (seats, doors and Windows, rearview mirrors) is standard | No sunroof/Electric doors and Windows + remote lock/electric adjustment, no defrosting, manual folding, no turn signal, rearview mirror |
