Power Performance

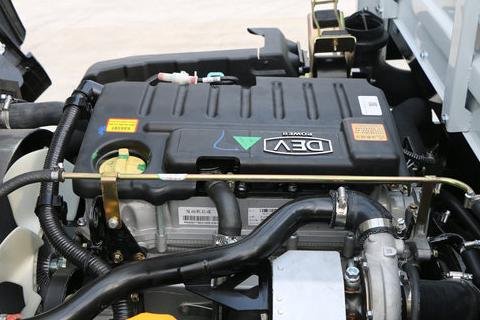

In terms of power, the SAIC Yuejin C100 is equipped with a Yunnei D19TCIE3 engine, with a displacement of 1.91L, a maximum horsepower of 115, and a maximum torque of 285 N.m. Yunnei Power, as a long-established domestic engine brand, is widely known for its high cost-performance ratio and high reliability, and is widely used in light trucks.

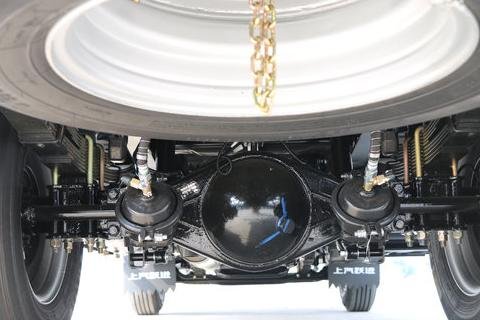

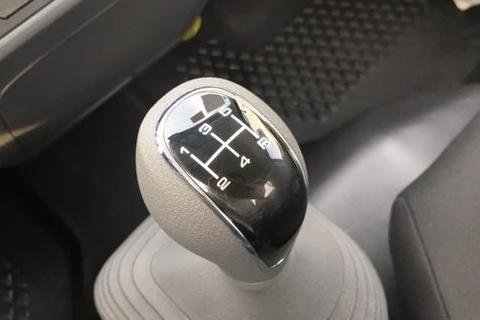

It is paired with a Wanliyang 5-speed transmission, with a rear axle ratio of 4.875. Both the front and rear suspensions use a 7/5+5 leaf spring structure, ensuring vehicle load-bearing capacity while meeting vehicle regulations.
Exterior

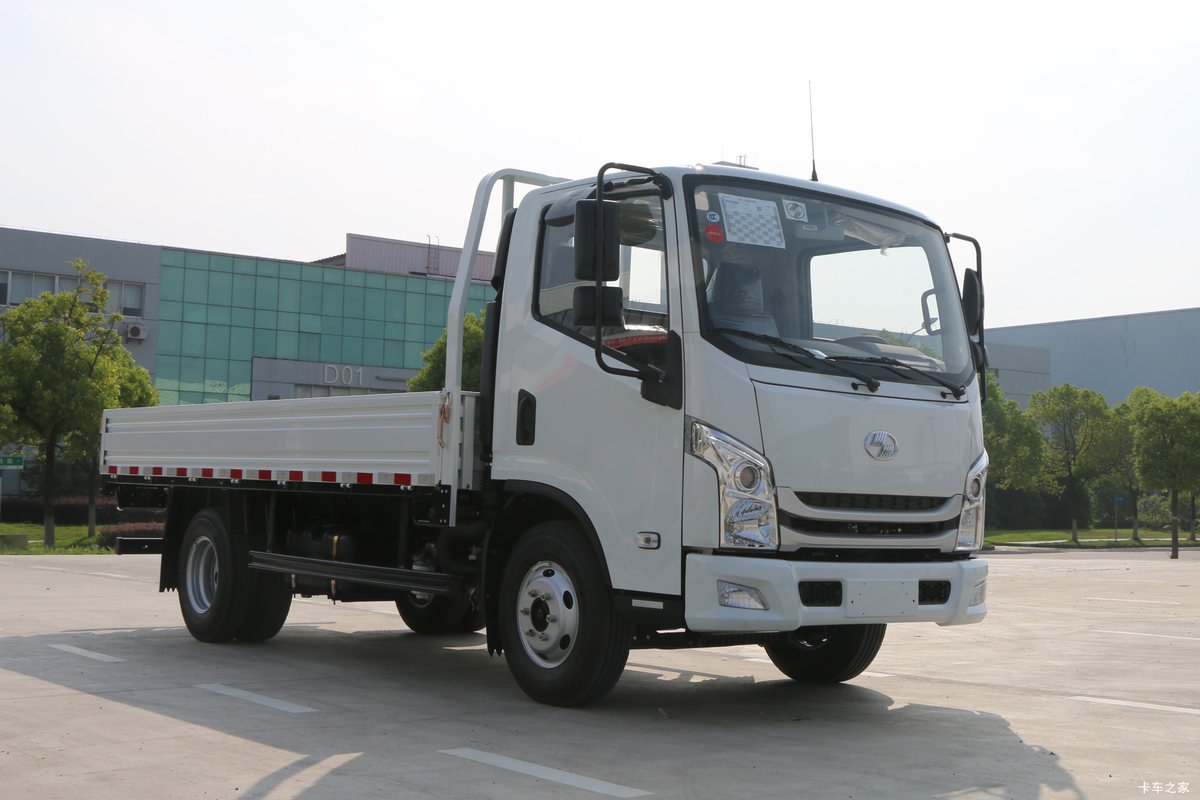

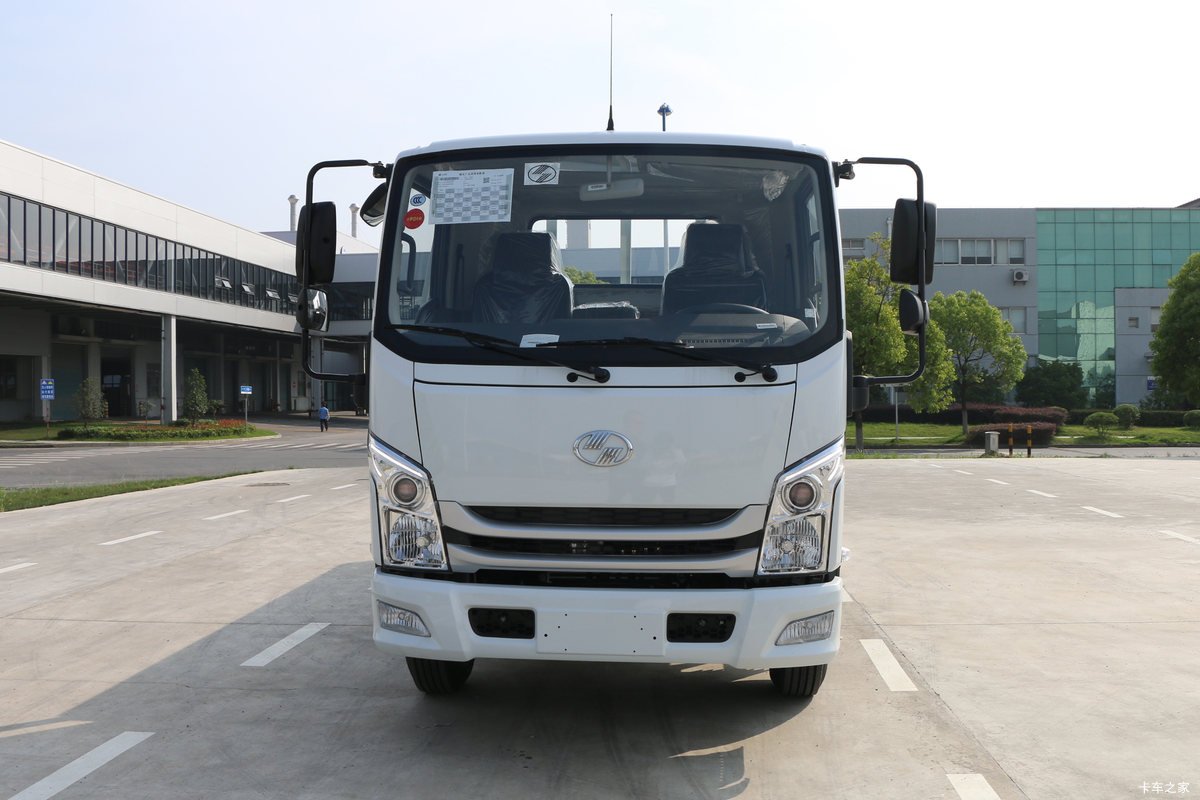

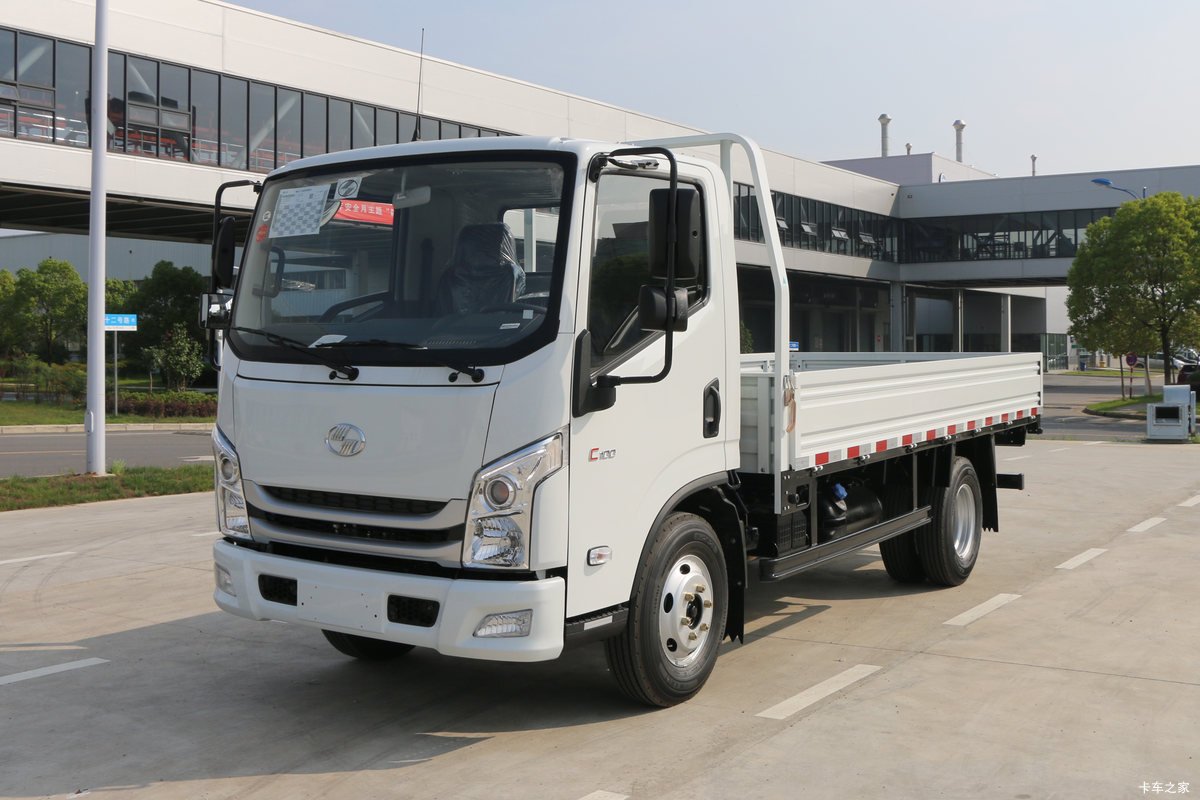

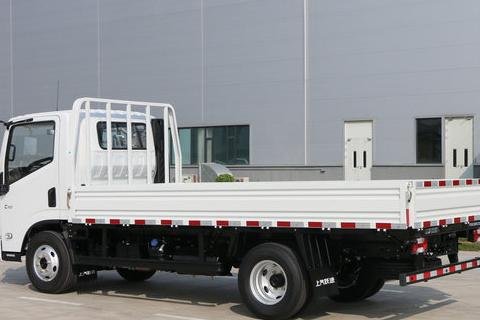

In terms of appearance, the SAIC Yuejin C100 boasts a maximum rear track width of 1620 mm. Although the C100 is a narrow-body model, the wide track design significantly improves its driving stability. This means that whether navigating city streets or speeding on highways, there is no need to worry about rollover. The vehicle uses an air braking system and is equipped with ABS anti-lock braking system and adaptive suspension, greatly enhancing braking safety.

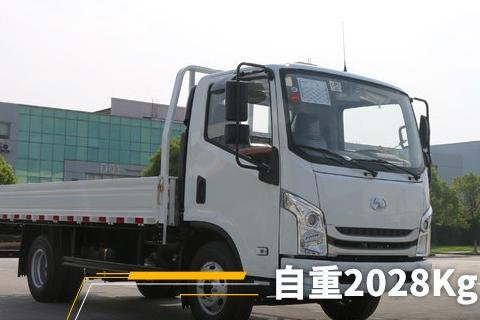

The SAIC Yuejin C100 features a lightweight design, with a curb weight of only 2028 kg (Class II vehicle). The truck’s curb weight is 2705 kg, fully complying with blue license plate requirements.
This truck measures 4200×2090×2050 mm, with a maximum volume of 17.9 cubic meters, capable of accommodating two 1-meter standard pallets.
| Model | C100-28S4 (REAR SINGLE TYRE) | C100-28D5 | |
|---|---|---|---|
| Cab | Type | Single Row | Single Row |
| Tilted | ● | ● | |
| No. of Seats | 3 | 3 | |
| Dimension (mm) | Overall Dimension | 5450×1940×2310 | 5450×1940×2310 |
| Wheelbase | 2800 | 2800 | |
| Cargo Body Dimension | 3610×1810×370 | 3610×1810×370 | |
| Min. Ground Clearance | 180 | 180 | |
| Weight (kg) | Kerb Weight | 2500 | 2550 |
| Payload | 1800 | 2500 | |
| G.V.W . | 4300 | 5200 | |
| Power | Engine Brand | SAIC ENGINE | IVECO SOFIM |
| Engine Model | SC28R125Q4 | SOFIM8140.43D4 | |
| Emission Standard | EURO IV | Euro IV | |
| Displacement (cc) | 2776 | 2798 | |
| Engine Power(Kw/rpm) | 92/3000 | 92/3000 | |
| Engine Torque（ N.m/rpm ） | 330/1800~2400 | 320/1600 | |
| Gearbox Model | WLY5G40 | IVECO2830.5 | |
| Gearbox Torque（ N.m ） | 400 | 320 | |
| Max. Speed(km/Hr) | 105 | 105 | |
| Max. Climb Ability（%） | 30 | 30 | |
| Loading | Chassis Frame Section Dimension（ mm ） | 180*70*4 | 180*70*4 |
| Suspension | FR & RR Leaf Spring, 7/8+6 | FR & RR Leaf Spring, 7/8+6 | |
| FR&RR Axle Payload | 1.8T/3.7T | 1.8T/3.7T | |
| Tire Size | 7.00R16-12 | 6.50R16-12 | |
| Brake | Serving Brake Type | Hydraulic Brake | Hydraulic Brake |
| Parking Brake Type | Central Drum Brake | Central Drum Brake | |
| Exhaust Assistant Brake | ● | ● | |
| ABS | ● | ○ | |
| Front Disc Brake | ○ | ○ | |
| Comfort | A/C | ○ | ● |
| Power Steering | ● | ● | |
| Power Window | ● | ○ | |
| Central Lock & Remote Control | ● | ○ | |
| Front Parabolic Spring | ○ | ○ | |
| Others | Voltage | 12V | 12V |
| Fuel Tank Volume | 85L | 85L | |
| ● Standard ○ Optional / Not Available | |||
| C100-28S4 Single Cabin ○ 3 | |||
| 1720mm | |||
| SAIC ENGINE 1st：5.502 2nd: 2.790 3rd:1.580 4th ：1 5th：0.793 R：4.916 SC28R125Q4 4.875 | |||
| EURO IV 7.00R16LT 12PR (无内胆tubeless) 2776 376 | |||
| 92/3000 5450×1940×2310 330/1800~2400 2800 | |||
| WLY5G40 3610×1810×370 | |||
| ≥175 | |||
| 1500/1476 2500 1800 4300 |
