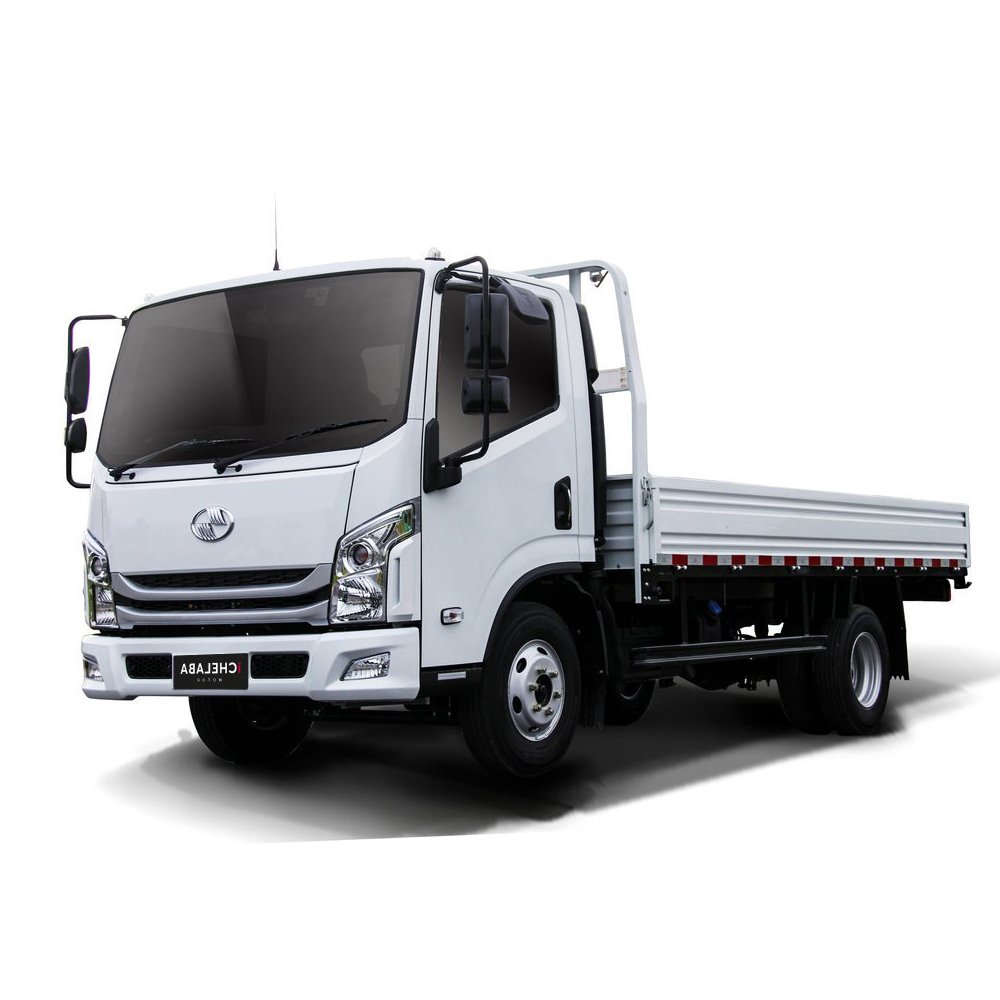

| Model | C300-33D6 | C300-33D6 | |
|---|---|---|---|

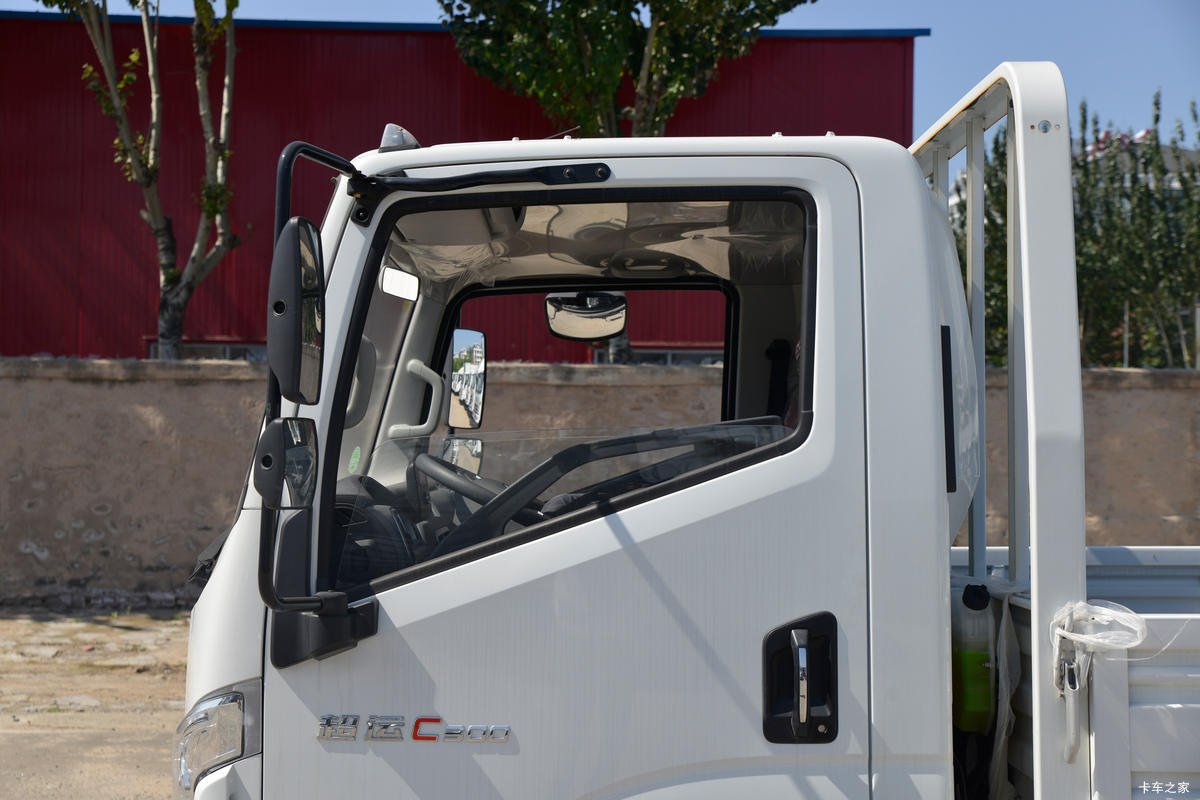

| Cab | Type | Single Row | Single Row |
| Tilted | ● | ● | |

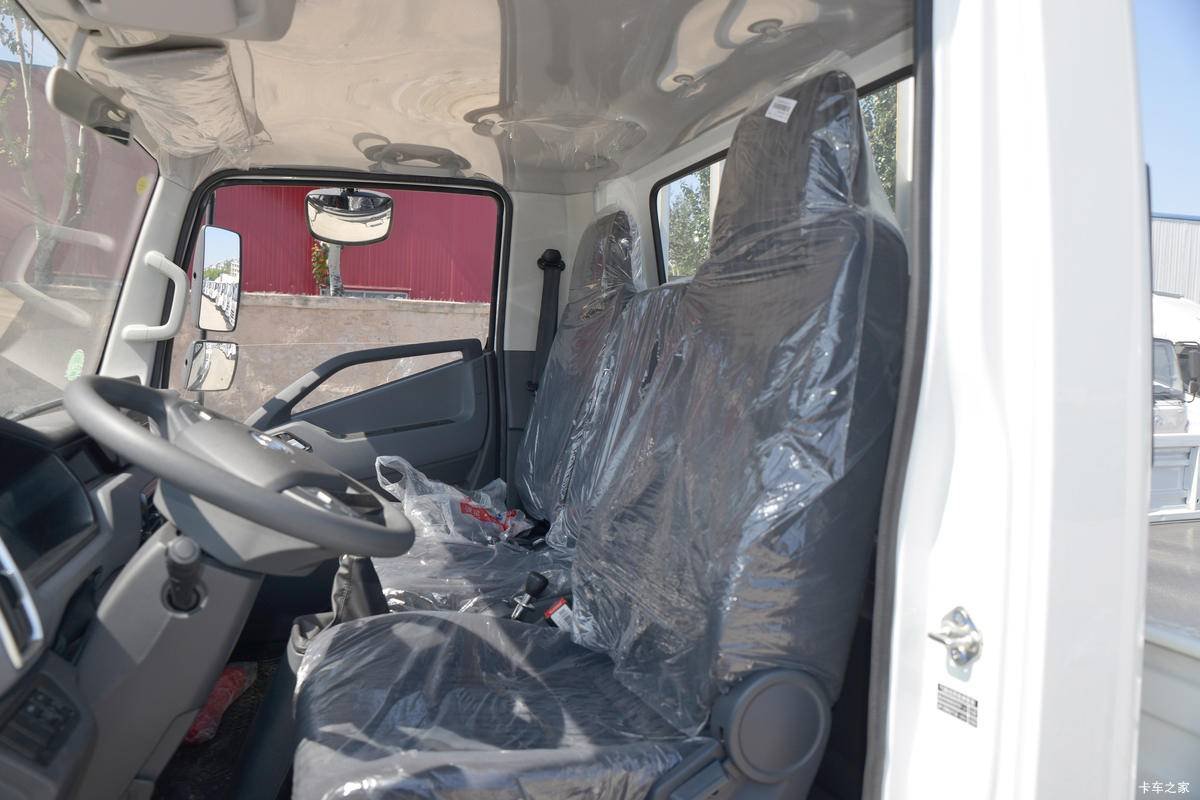

| No. of Seats | 3 | 3 | |
| Dimension (mm) | Overall Dimension | 5995×2030×2329 | 5995×2030×2329 |
| Wheelbase | 3308 | 3308 | |
| Cargo Body Dimension | 4155×1900×420 | 4155×1900×420 | |
| Min. Ground Clearance | 180 | 180 | |
| Weight (kg) | Kerb Weight | 2770 | 2770 |
| Payload | 3630 | 3630 | |
| G.V.W . | 6400 | 6400 | |
| Power | Engine Brand | IVECO SOFIM | IVECO SOFIM |
| Engine Model | SOFIM8140.43D3 | SOFIM8140.43DV | |
| Emission Standard | Euro III | Euro V | |
| Displacement (cc) | 2798 | 2798 | |
| Engine Power(Kw/rpm) | 92/3000 | 92/3000 | |
| Engine Torque（ N.m/rpm ） | 320/1600 | 320/1600 | |

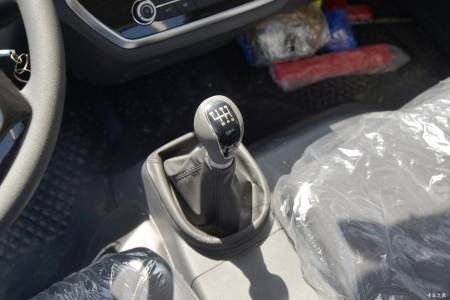

| Gearbox Model | IVECO 2830.5 | IVECO2830.5 | |
| Gearbox Torque（ N.m ） | 320 | 320 | |
| Max. Speed(km/Hr) | 105 | 105 | |
| Max. Climb Ability（%） | 30 | 30 | |
| Loading | Chassis Frame Section Dimension （ mm ） | 180*70*4 | 180*70*4 |
| Suspension | FR & RR Leaf Spring, 8/8+9 | FR & RR Leaf Spring, 8/8+9 | |
| FR&RR Axle Payload | 2.3T/4.2T | 2.3T/4.2T | |
| Tire Size | 7.00R16 | 7.00R16-12 | |
| Brake | Serving Brake Type | Hydraulic Brake & Drum | Hydraulic Brake & Drum |
| Parking Brake Type | Central Drum Brake | Central Drum Brake | |
| Exhaust Assistant Brake | ● | ● | |
| ABS | ○ | ○ | |
| Front Disc Brake | ○ | ○ | |

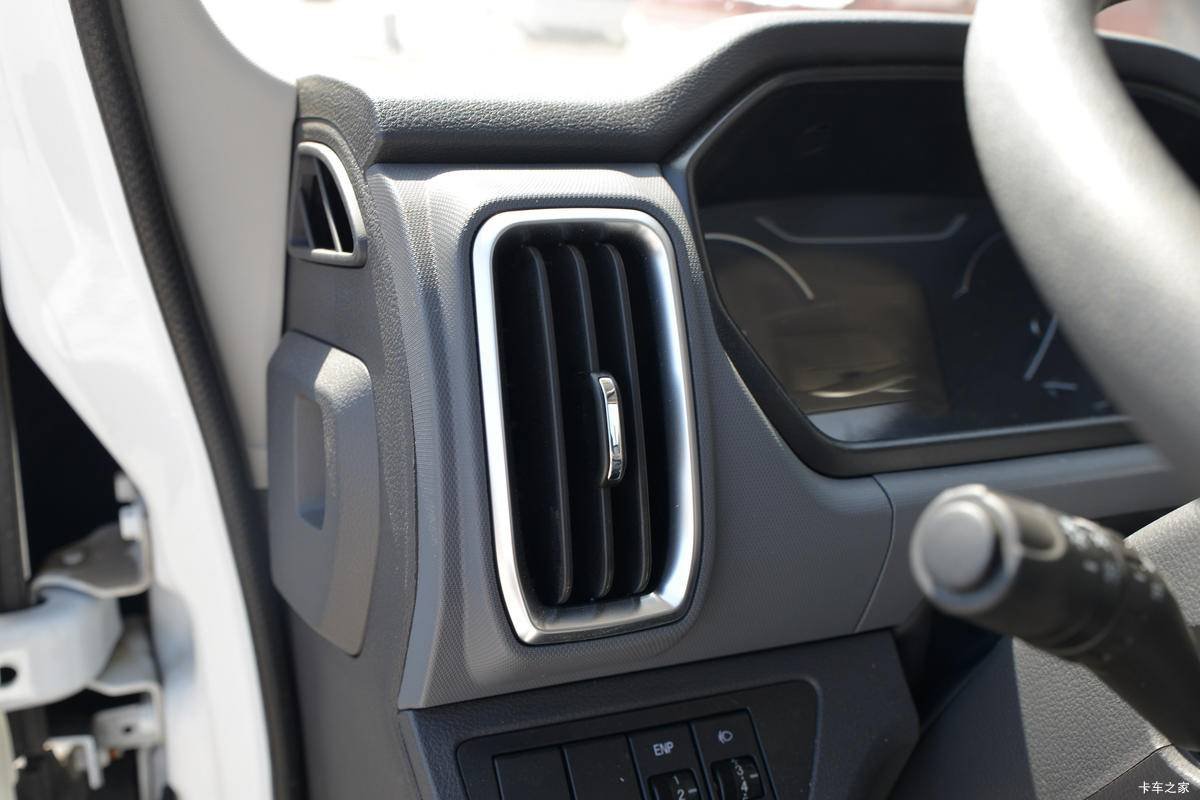

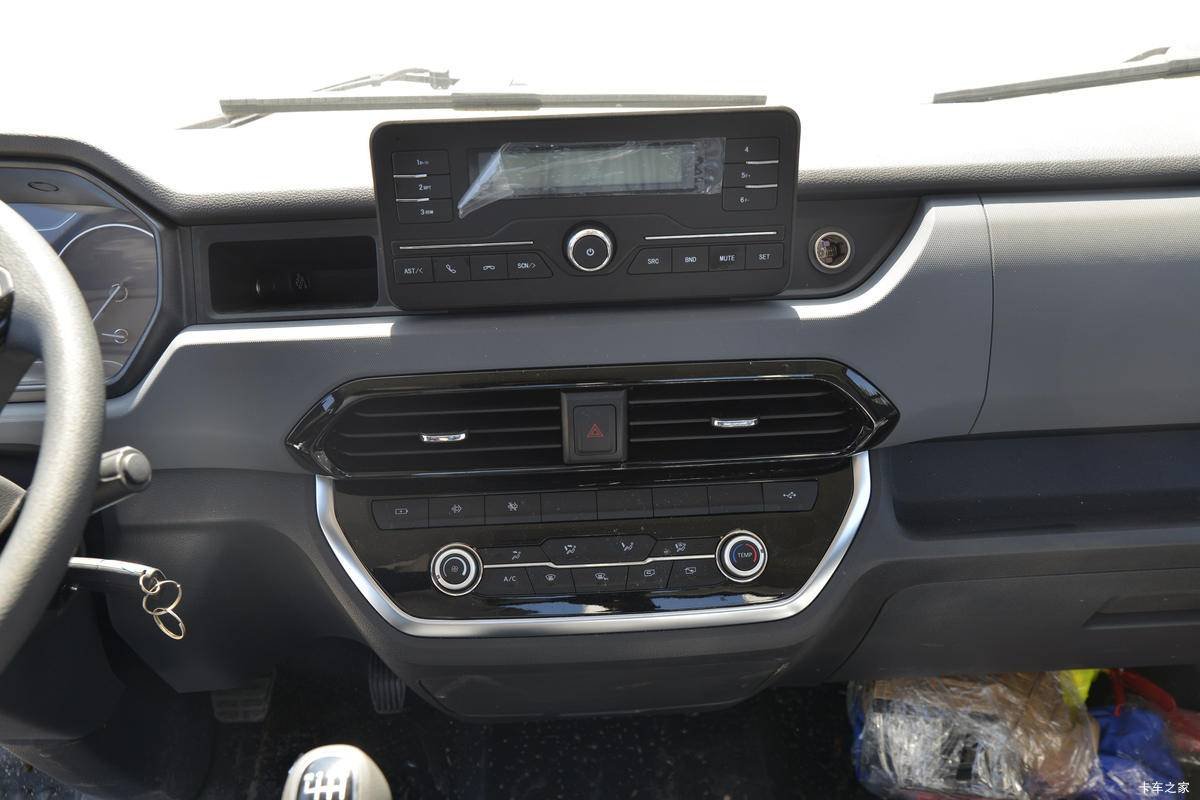

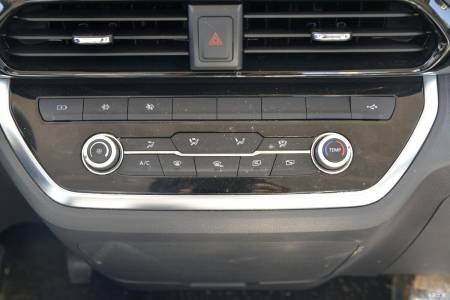

| Comfort | A/C | ● | ● |

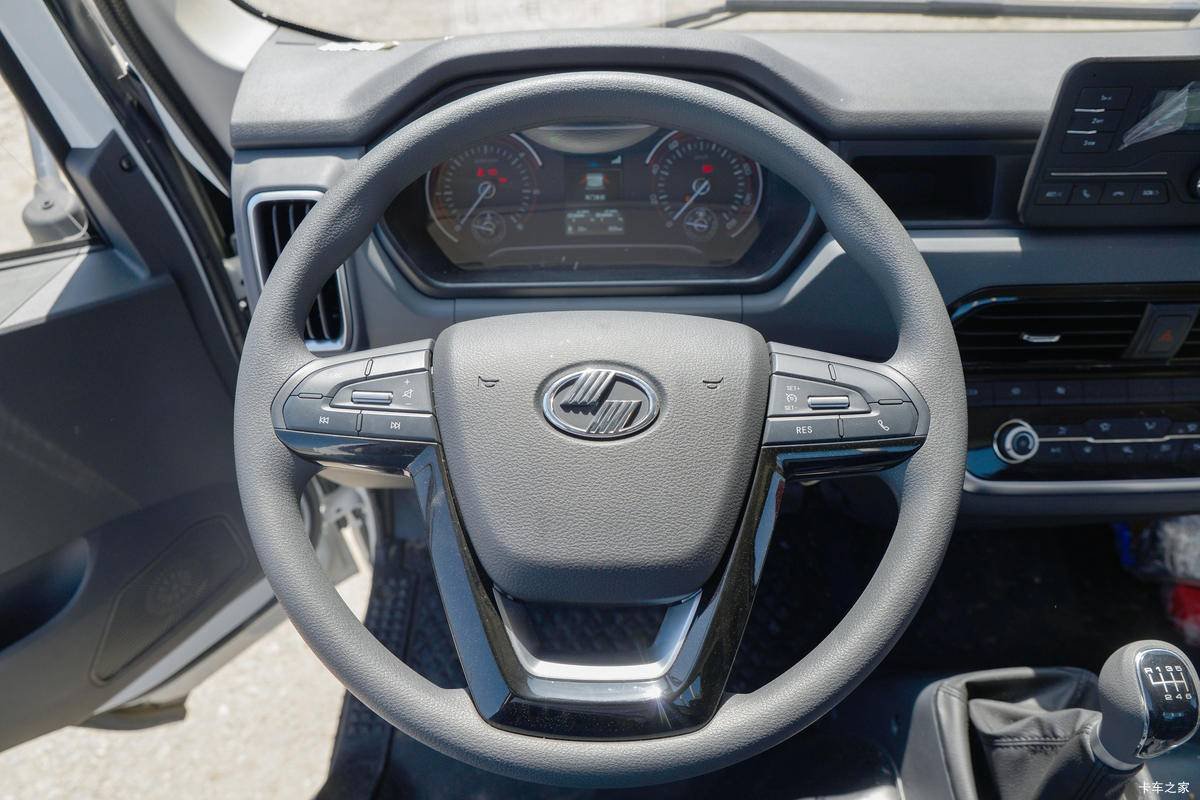

| Power Steering | ● | ● | |
| Power Window | ● | ○ | |
| Central Lock & Remote Control | ● | ○ | |
| Front Parabolic Spring | ○ | ○ | |
| Others | Voltage | 12V | 12V |
| Fuel Tank Volume | 85L | 85L | |
| ● Standard ○ Optional / Not available |
