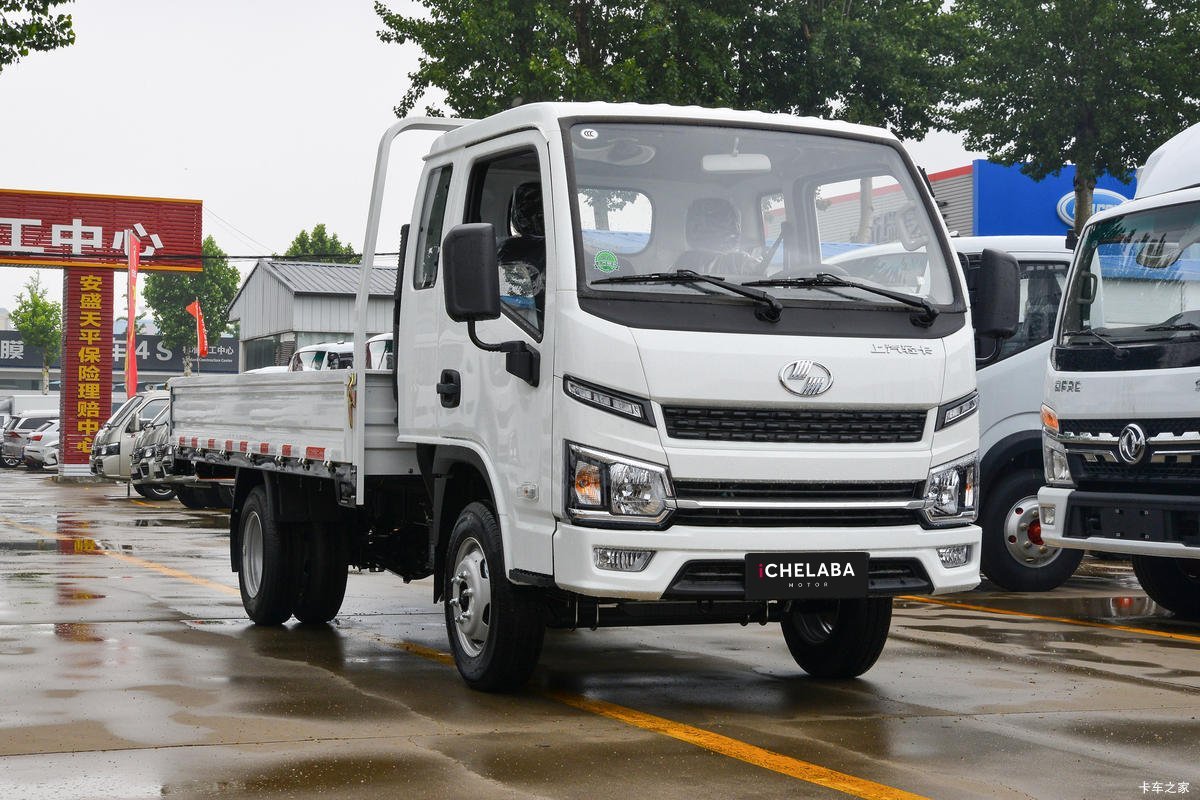

| Model | S80 | |
|---|---|---|

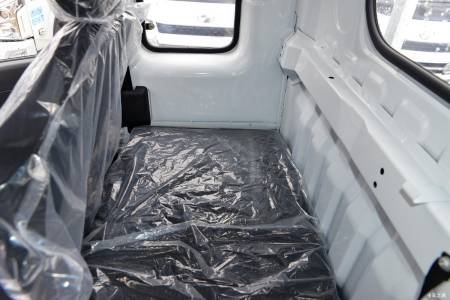

Cab | Type | Single Row |
| Tilted | / | |

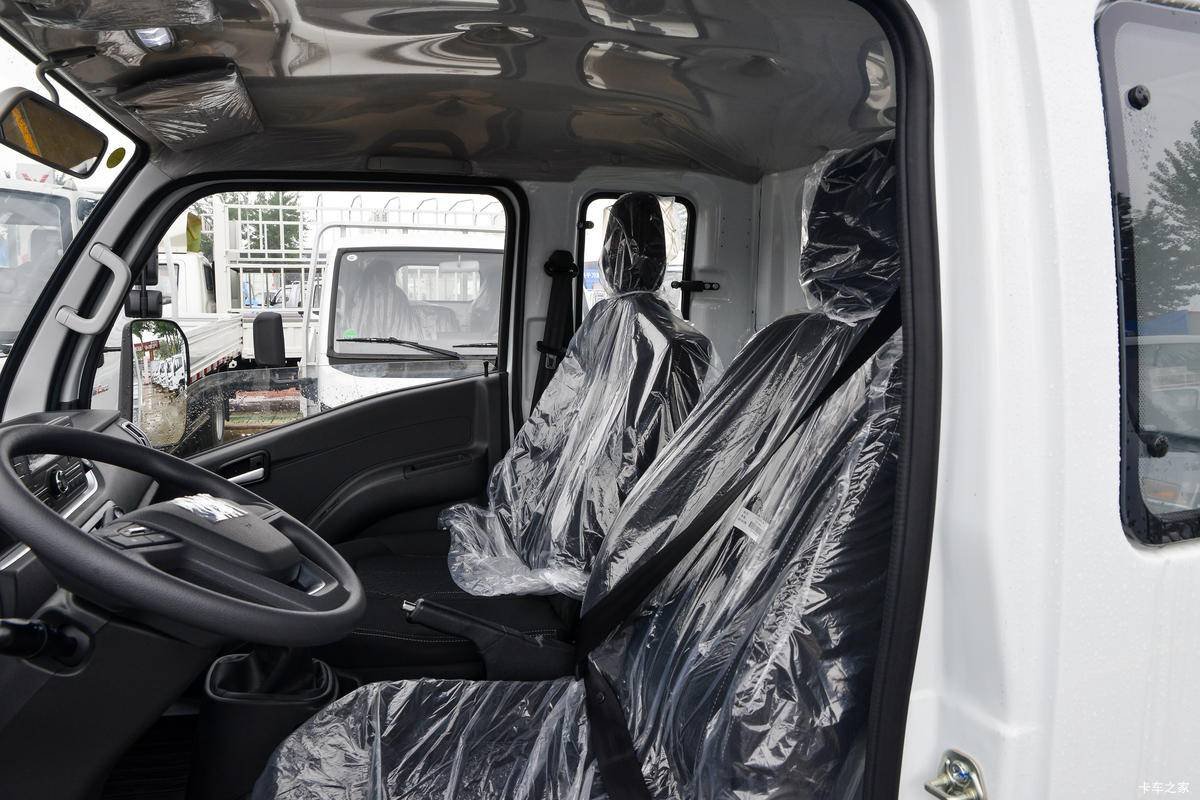

| No. of Seats | 2 | |
| Dimension (mm) | Overall Dimension | 5420*1810*2080 |
| Wheelbase | 2800 | |

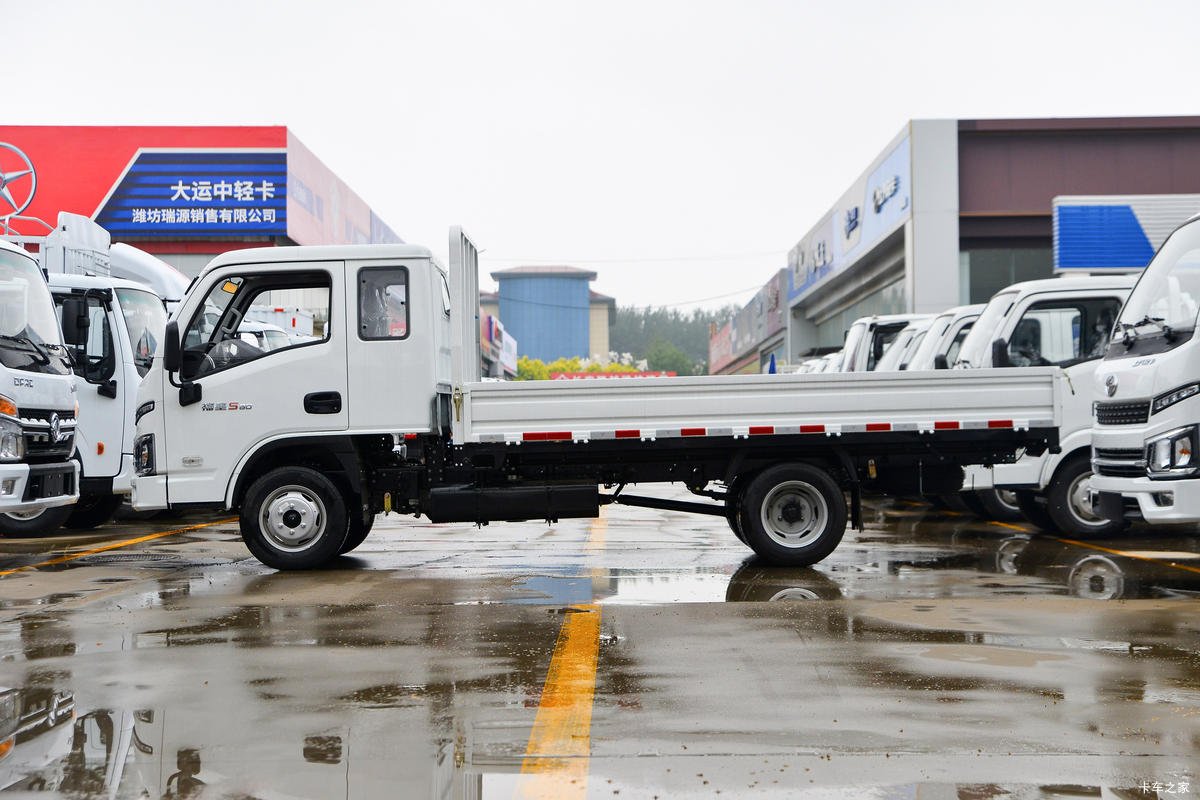

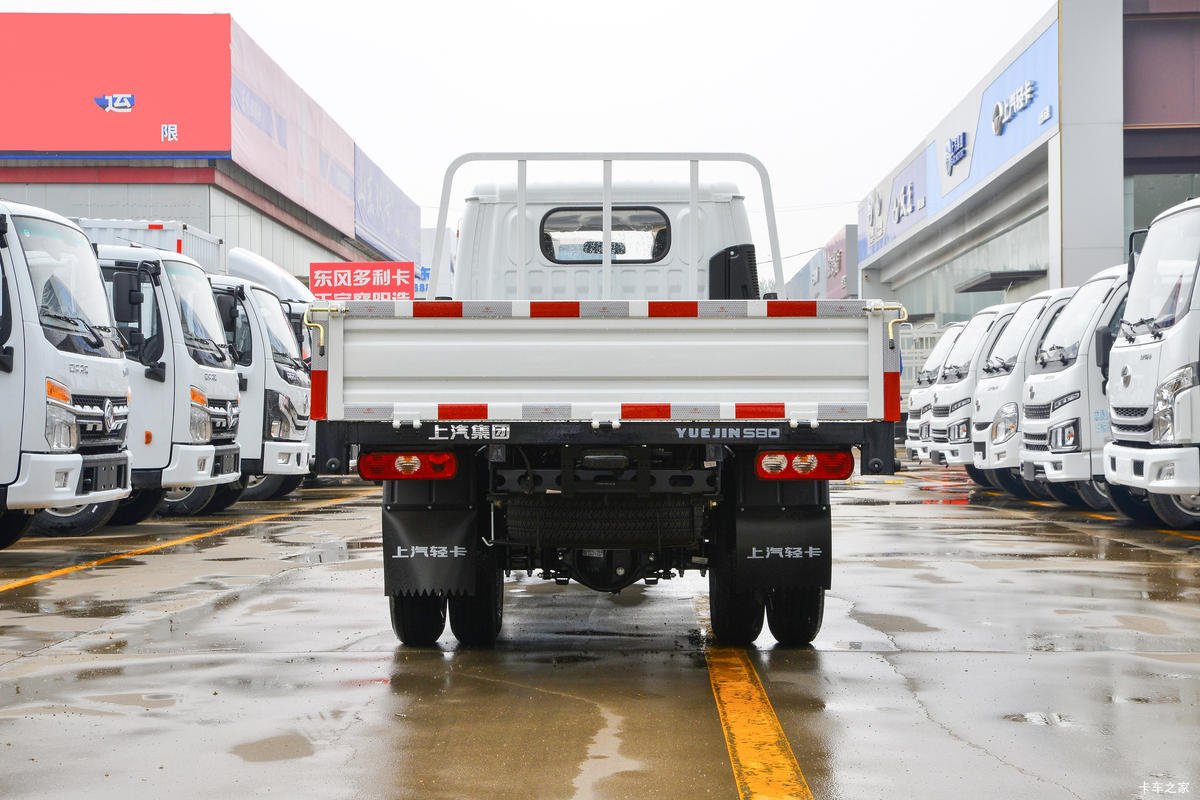

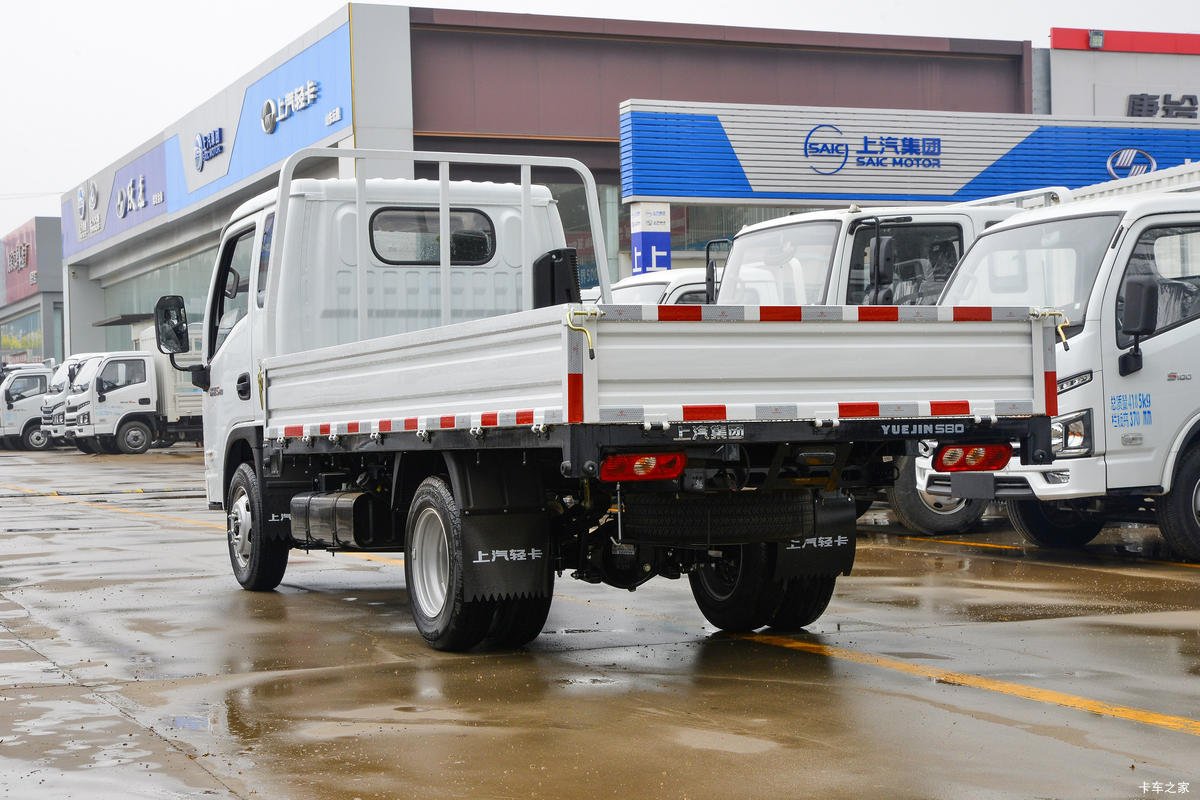

| Cargo Body Dimension | 3650*1715*370 | |
| Min. Ground Clearance | 150 | |
| Weight (kg) | Kerb Weight | 1530 |
| Payload | 1830 | |
| G.V.W. | 3490 | |
| Power | Engine Brand | YUNNEI |
| Engine Model | D19TCIE10 | |
| Emission Standard | Euro V | |
| Displacement (cc) | 1912 | |
| Engine Power(Kw/rpm) | 70/6000 | |
| Engine Torque（N.m/rpm） | 190/1800-2600 | |

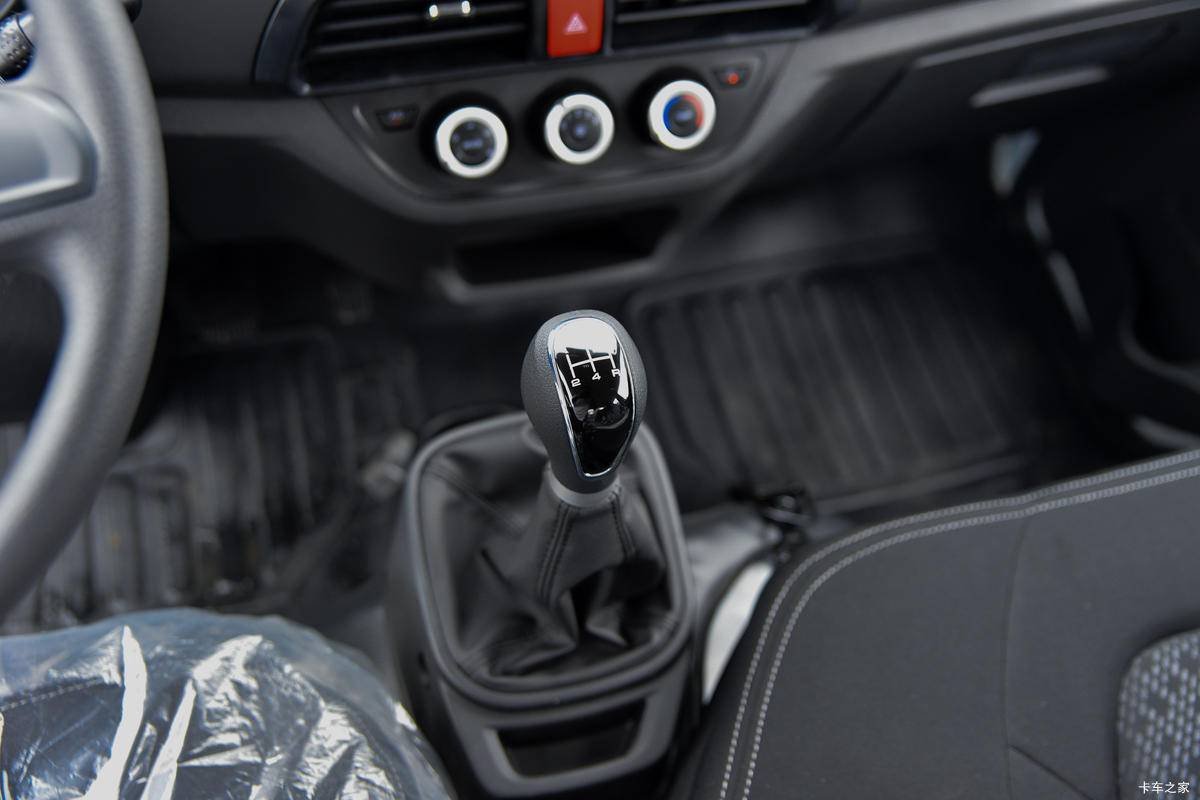

| Gearbox Model | MT78 | |
| Gearbox Torque（N.m） | 210 | |
| Max. Speed(km/Hr) | 100 | |
| Max. Climb Ability（%） | 30% | |
| Loading | Chassis Frame Section Dimension（mm） | 130×50×4 |
| Suspension | FR & RR Leaf Spring, 3/5 | |
| FR&RR Axle Payload | 1300/2190 | |
| Tire Size | 185R14 | |
| Brake | Serving Brake Type | Hydraulic Brake |
| Parking Brake Type | Central Drum Brake | |
| ABS+EBD | ● | |
| Front Disc Brake | ● | |
| Comfort | A/C | ○ |
| Power Steering | ● | |
| 10' touch screen with reverse video | ○ | |
| Roof Ventilation | ○ | |

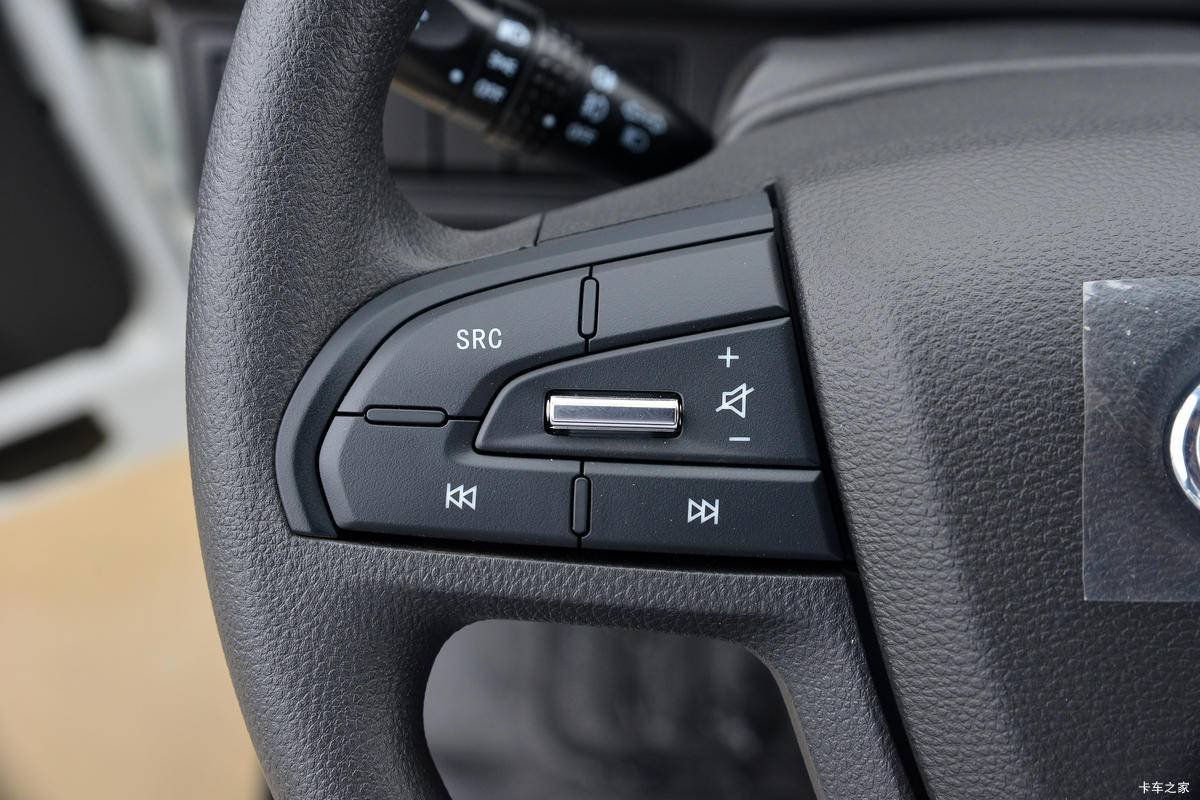

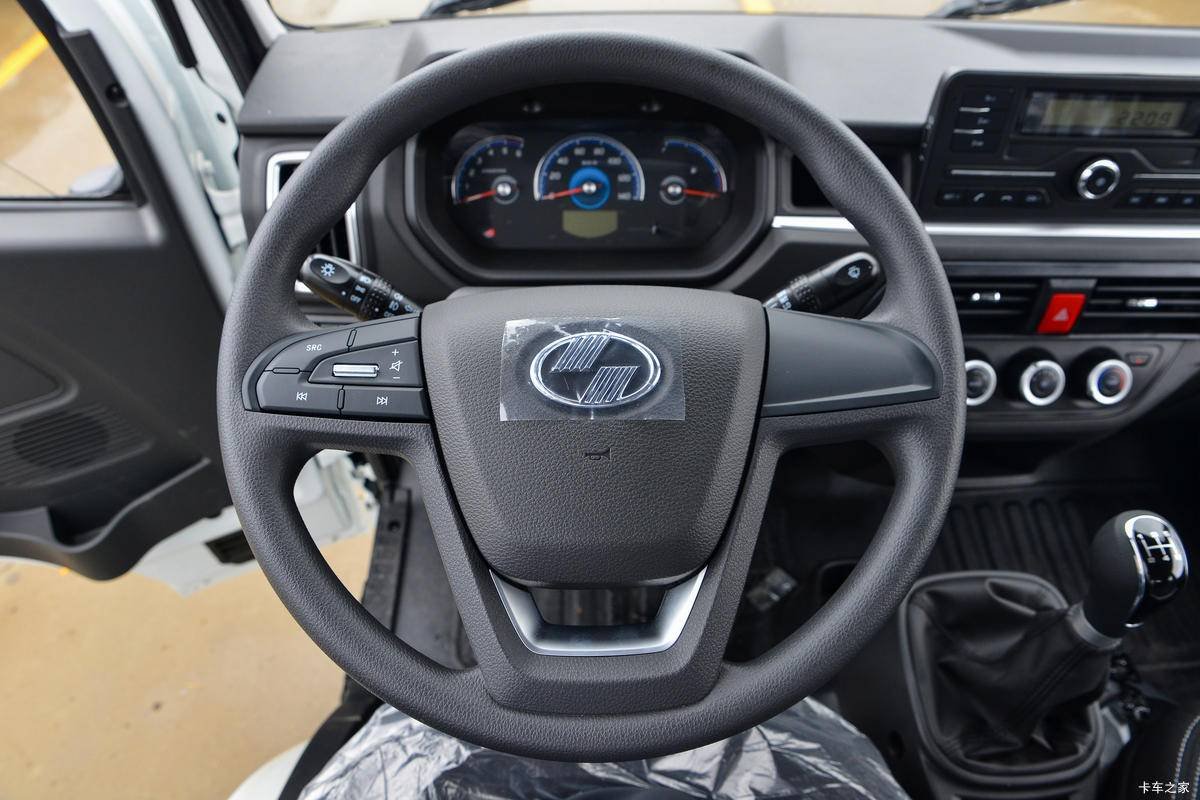

| Multifunction Steering Wheel | ○ | |
| Remote control and central lock | ● | |
| Power Window | ● | |

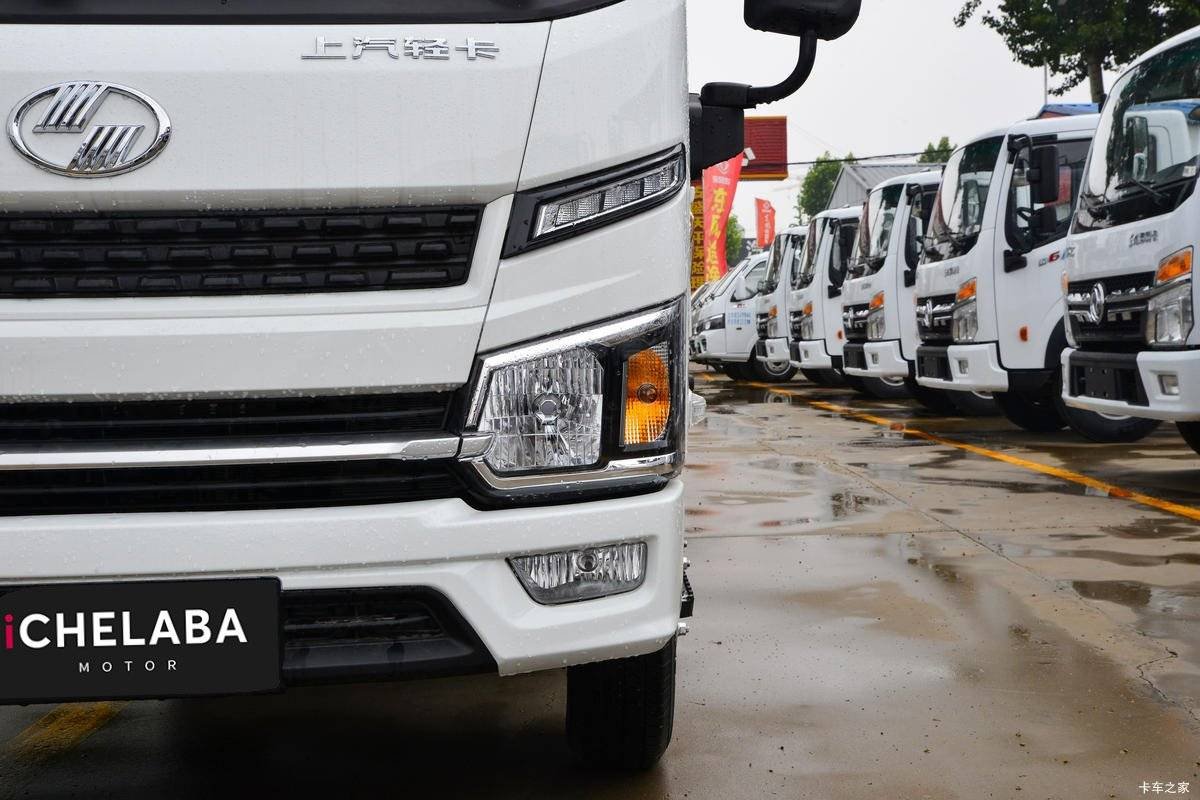

| Others | Electric-adjusted headlamp | ● |
| Voltage | 12V | |
| Fuel Tank Volume | 45L | |
| ● Standard / Not Available |
