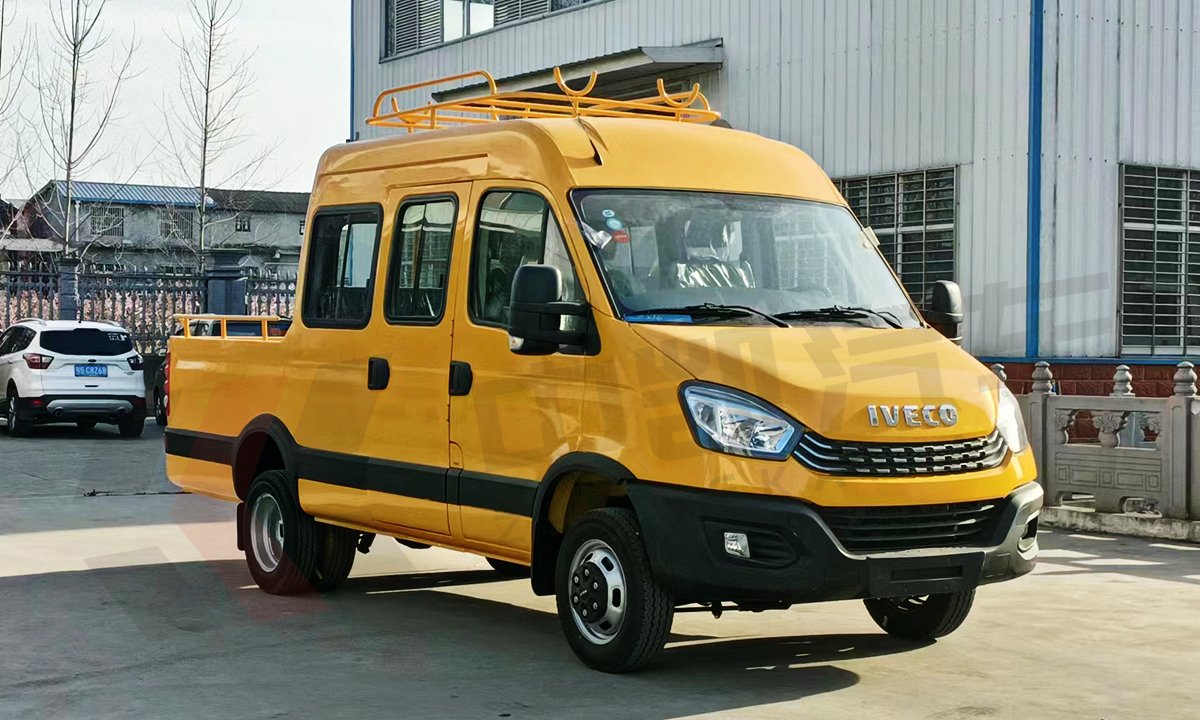

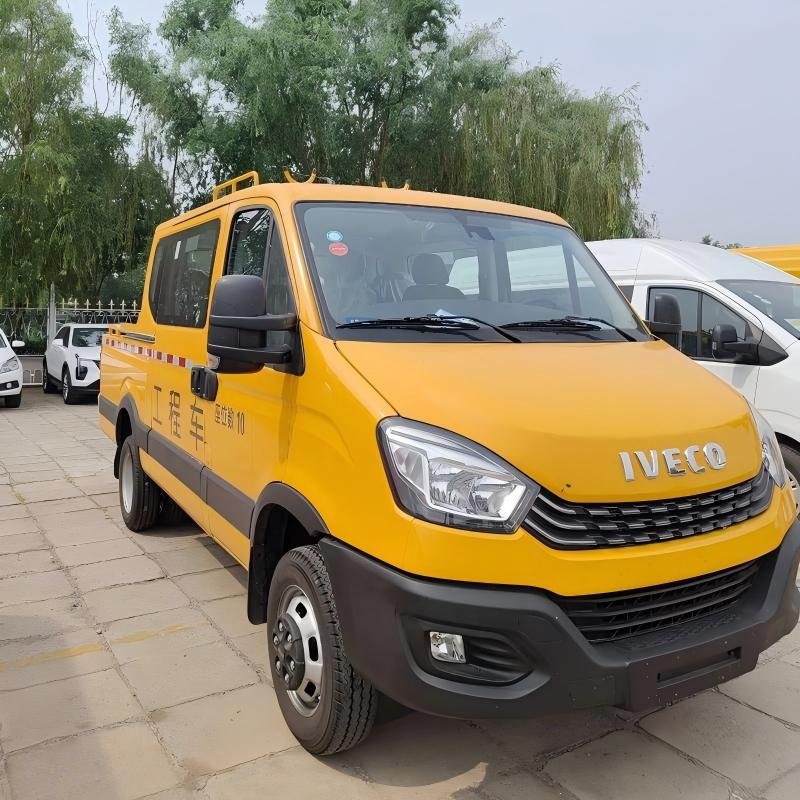

Iveco Daily 9-13 Seat Engineering Vehicle: The Ultimate Mobile Work Platform for Emergency Response

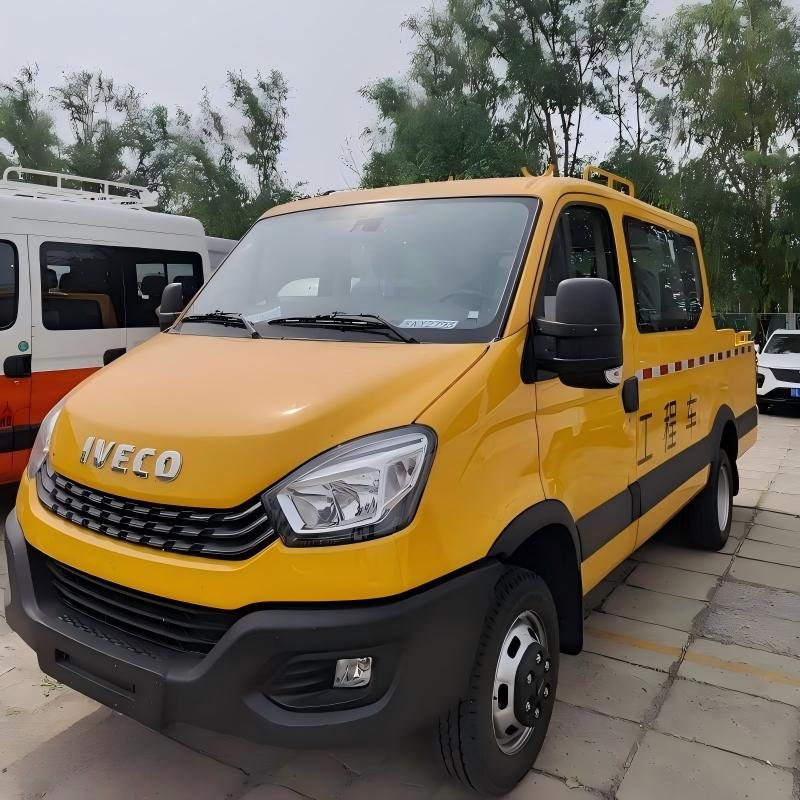

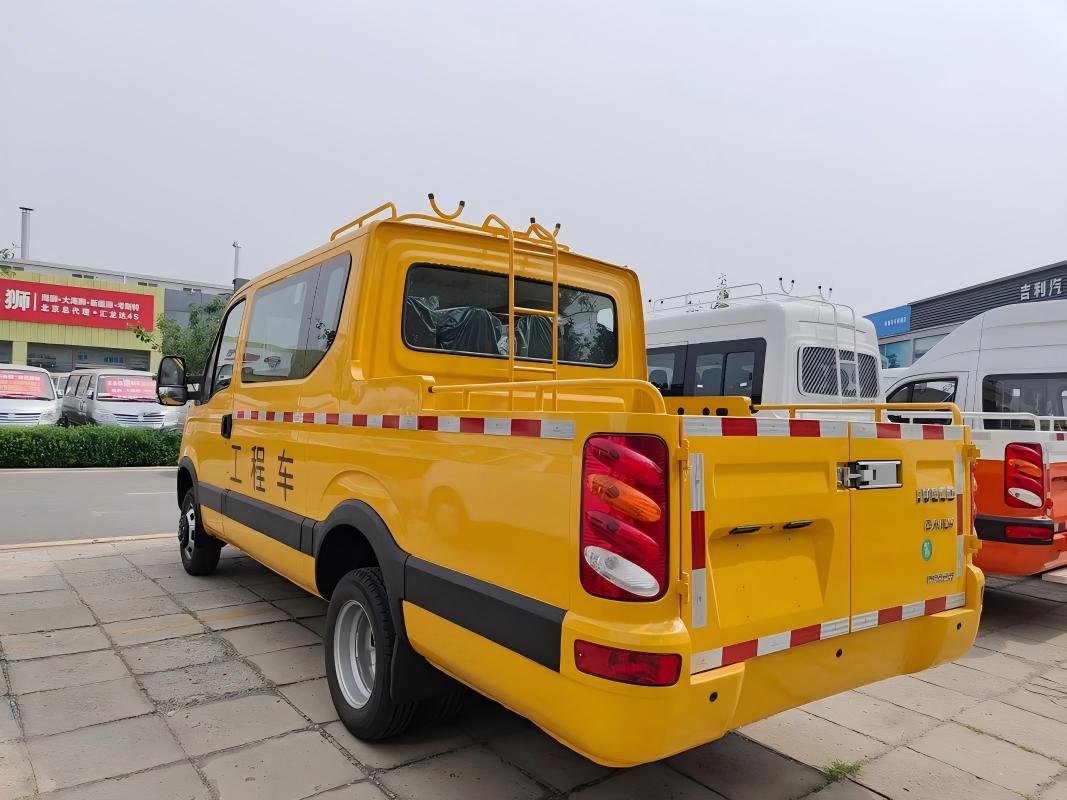

Product Configuration: Stylish and imposing exterior, rugged design, rich high-tech features in line with European standards, equipped with roof rack and rear ladder. Optional accessories include a portable toolbox, cable reel, fuel heater, original imported ZF 8-speed automatic transmission, etc. Superior performance, practical and reliable.
The Ousheng bucket truck uses a TRW technology hydraulic power steering system, with a turning diameter ≤13M, a gradeability greater than 30%, and a ground clearance greater than 171mm, providing excellent passability.
This engineering vehicle adopts a non-load-bearing body and load-bearing chassis structure, offering good torsional resistance; the front suspension uses a double wishbone torsion bar spring independent suspension, providing excellent load-bearing capacity and comfort.
Various cargo box sizes and modification options are available, and professional customization is possible upon request.
| Product Name: | Engineering Vehicle |
|---|---|
| Product Model: | SZY5045XGCN6E |
| Dimensions (mm) Length × Width × Height: | 5930, 5980 × 2020 × 2540, 2650, 2740, 2790 |

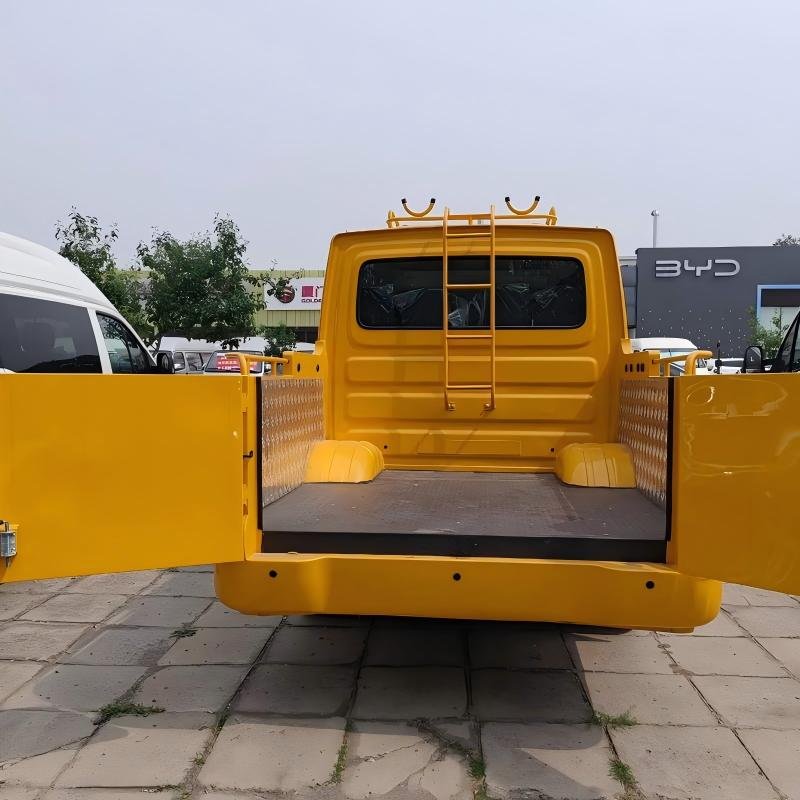

| Cargo Box Dimensions (mm) Length × Width × Height: | 1240 × 1820 × 600 |
| Number of Occupants in Cab: | 3 |

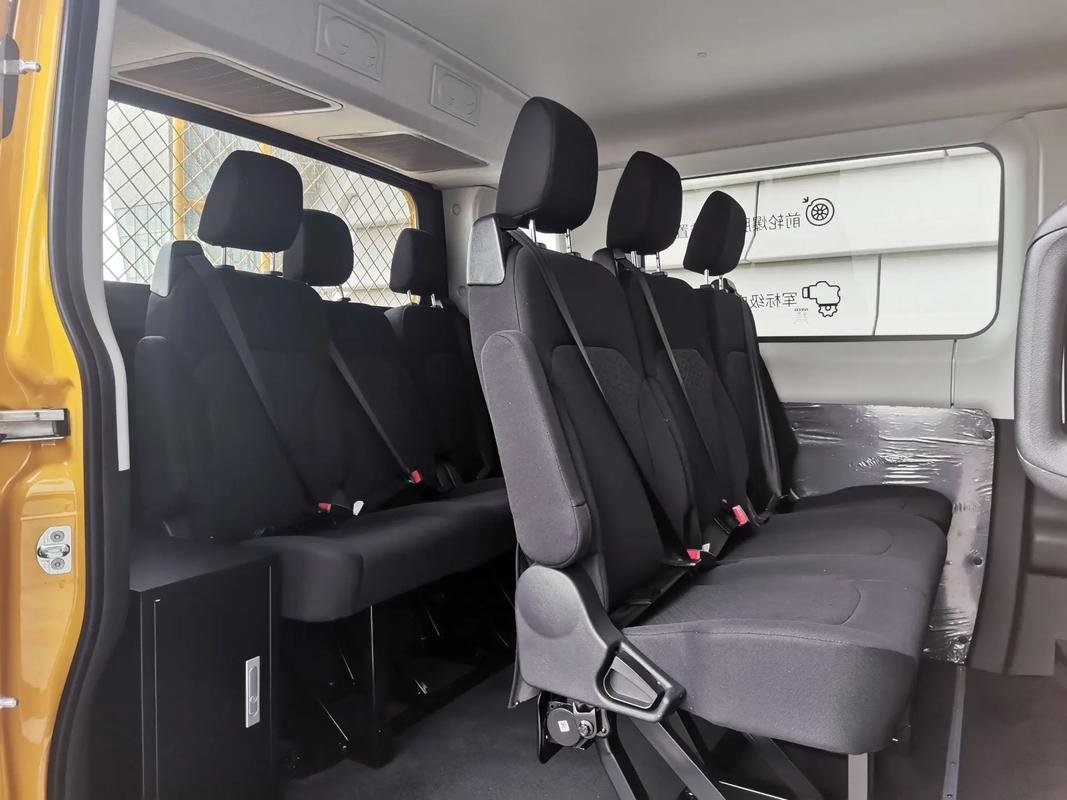

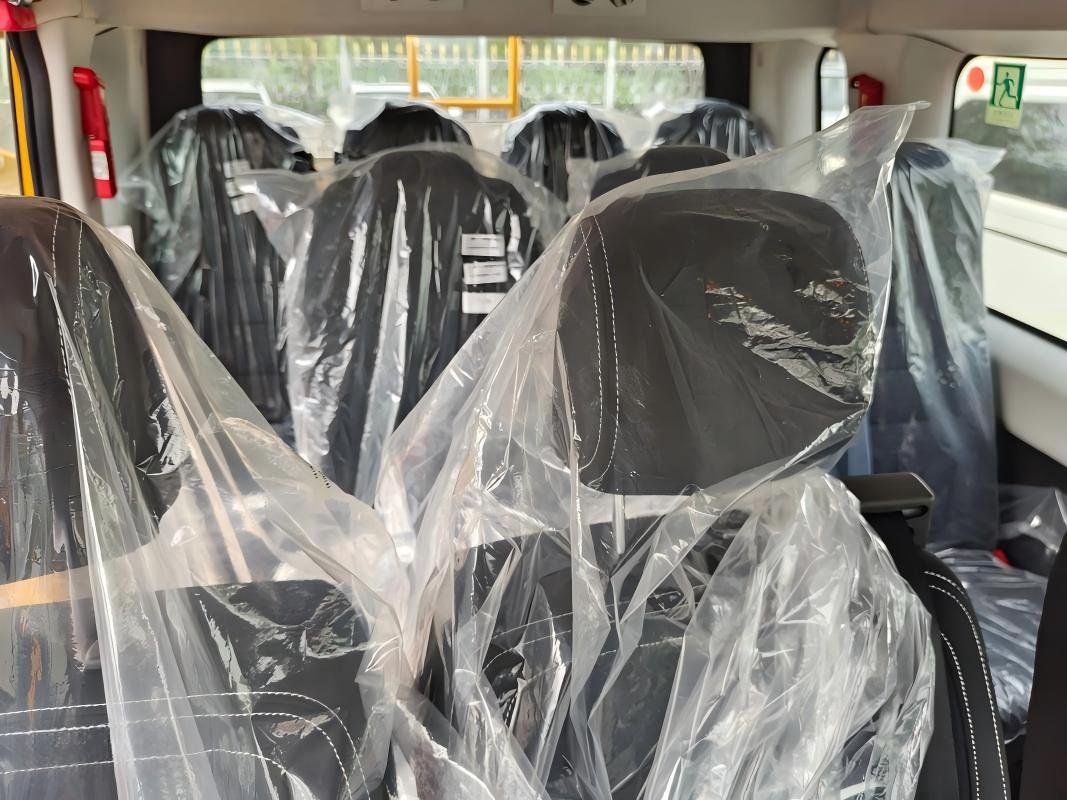

| Rated Passenger Capacity: | 10-13 |
| Steering Type: | Hydraulic Power Steering |
| Emission Standard: | GB3847-2005, GB17691-2018 National VI |
| Number of Axles: | 2 |
| Wheelbase (mm): | 3300 |
| Displacement (ml): | 2998 |
| Power (kW): | 132 |
| Tire Specifications: | 195/75R16LT 10PR |
| Number of Tires: | 6+1 |
| Gross Vehicle Weight (kg): | 4490 |
| Curb Weight (kg): | 2880 |
| Approach Angle/Departure Angle (°): | 24/10 |
| Front Overhang/Rear Overhang (mm): | 1002/1628, 1002/1678 |
| Axle Load (kg): | 1490/3000 |
| Maximum Speed (km/h): | 130 |
